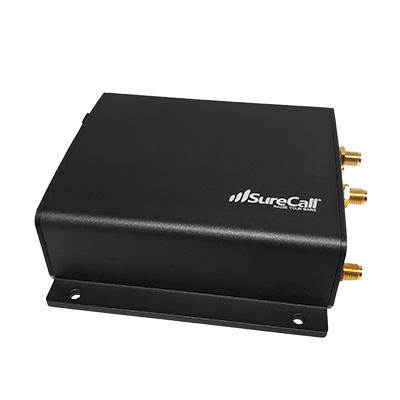

SureCall Cellular Modem with Built-in Router
SureCall Cellular Modem with Built-in Router
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-Modem
- Questions & Answers
- Make An Offer
SureCall's Cellular Modem with built-in Router enables easy off-site booster adjustments without a wired Internet connection. This SKU, "SC-Modem" offers wireless access to the remote management hardware - allowing for operation independent of the building’s wired Ethernet or Wi-Fi connection.
- 3G and 4G LTE cellular modem/router supports all major North America cell carriers.
- Ruggedly designed cellular gateway inside durable metal enclosure.
- Includes T-Mobile enabled SIM card and activation instructions.
- Industry leading 3-year warranty.
Cellular Modem with built-in Router enables easy off-site adjustments without a wired Internet connection. It offers wireless access to the remote management hardware inside SureCall signal boosters — allowing for operation independent of the building's wired Ethernet or WiFi connection. Includes T-Mobile enabled SIM card and activation instructions.
|WAN Interface||1x 10/100M Ethernet Port, 1x Embedded LTE Modem with Redundant SIM Slot.|
|LAN Interface||1x 10/100M Ethernet Port|
|Wi-Fi Interface||802.11b/g/n Wi-Fi WAN or AP|
|Router Throughput||100 Mbps|
|Cellular and GPS Antenna Connector||2x SMA Antenna Connectors, 1x SMA GPS Antenna Connector, 1x Wi-Fi Connector.|
|Power Input||DC Jack/Terminal Block: 12V - 28V, DC Passive PoE Input (WAN Port).|
|Power Consumption||12W (max.)|
|Dimensions||4.1 x 4.3 x 1.2 inches|
|Operating Temperature||-40° to 149°F|
|Humidity||115% – 95% (non-condensing)|
|Certifications||FCC, CE, RoHS, EN 61000: Electromagnetic Compatibility.|
Cellular Modem Interface Details:
SureCall Cloud and Cellular Modem with Embedded Router - A Powerful Combination.
SureCall Cloud and Cellular Modem with Embedded Router are the two à la carte solutions that further firms up SureCall's offering of the industry's leading remote management experience for installers, administrators and end users. "These products were born out of the need to equip our customers and installers with solutions that make remote management easy and secure," said Hongtao Zhan, founder & CEO at SureCall. "This combination of security hardware and highly intelligent software improves the entire signal booster experience for easier installation and better offsite management over a protected network."
The new SureCall Cloud is an intuitive application which offers effortless 24/7 remote management capabilities, enabling users to maximize the value of their signal booster deployments. With SureCall Cloud, installers and IT managers alike are empowered to provide seamless monitoring and troubleshooting at any time from any location, resulting in better performance at lower cost.
Additional features include:
- More Power to the User: Organize signal boosters by location via dashboard.
- Management Made Easy: View and adjust output power as well as incoming signal strength to ensure optimal performance of boosters for each location.
- Automated Alerts: Create customized email notifications to alert performance of boosters.
- Offsite Troubleshooting: Access booster's historical performance and adjust attenuation.
- Carrier Friendly: Enable or disable specific frequency bands.
- Performance Tracking: Establish a performance baseline with periodic snapshots.
- Endless Customization: Adjust uplink and downlink paths individually.
SureCall Cloud is powered by the Sentry hardware, which comes built into every SureCall Force5 2.0, Guardian 4, and Force 8, and is available as an add-on to Fusion 5X 2.0 and Fusion 5s signal boosters. Access to the SureCall Cloud application is completely free of charge and getting started is as simple as registering/ logging into the SureCall Cloud portal.
SureCall Cellular Modem with Embedded Router:
The SureCall Cellular Modem comes with a built-in router and enables the Sentry remote management hardware to connect the signal booster system to the SureCall Cloud server over a cellular network which completely bypasses the user's local network. The importance of this level of security is demonstrated by a recent Trustwave report stating that 61-percent of organizations have experienced an IoT security incident. While there is a SIM card with activation instructions ($5/mo.) included with the SureCall Cellular Modem, users have the option to utilize their own SIM card from any carrier. This Cellular Modem retails for $399.99 and is a modular add-on to any signal booster using the SureCall Sentry hardware.
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
