SureCall Fusion 5s 2.0 Omni/ 2 Dome Antenna Booster Kit
SureCall Fusion 5s 2.0 Omni/ 2 Dome Antenna Booster Kit
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-PolysH/O-72-OD2-KIT
SureCall Fusion 5s cell phone signal booster for home/ office with Omni external antenna, and 2 Dome internal antennas:
- Boosts voice, text, 3G, 4G reception of all United States cell providers.
- Reduces dropped and missed calls. Improves 3G and 4G data speeds.
- Covers up to 6000 sq. ft. of indoor space.
- Supports multiple wireless devices such as cell phones and mobile 3G and 4G connected tablets simultaneously.
- Expand indoor coverage more by purchasing add'l in-building antenna kits that include required cables and splitter to connect to this booster kit.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
SureCall Fusion 5s 2.0 cell phone signal booster with Omni exterior antenna and two interior Dome antennas provide superior signal strength for voice calls, text messages, and 3G + 4G LTE wireless internet signals on all USA cellular carrier networks.
It is perfect for boosting the signal in your whole home or small office up to 10,000 square feet range depending on outside signal strength and number of additional interior antennas. It is ideal for boosting reception for all cellphone service providers.
Easy to follow installation instructions are included. However, if you realize you need help with installation, a professional installation of this kit is available for your residential or commercial business address anywhere within USA 50 states. Please contact SignalBooster.com with your order number after purchase of this kit for your home, or office / retail store building for instructions to pay and schedule installation at the cost of $299.99 by a certified professional installer.
Actual indoor coverage area depends on strength of outside signal.
- 1,000 sq. ft. with roughly 1-2 bars (-100 dB) of outside signal.
- 3,000 sq. ft. with roughly 3-4 bars (-90 dB) of outside signal.
- 10,000 sq. ft. with full 5 bars of outside signal.

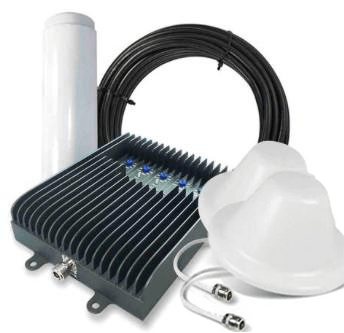

Sure Call Fusion5s 2.0 kit includes an outdoor Omni antenna and 2 indoor dome antennae, as well as 10 feet, 75 feet, and two 50 feet of SureCall 400 low loss coaxial cables. Included is a two way splitter to enable use of the two interior dome shaped antennas. UPC: 697691004211.
Omni / Dome configuration is best used when outside signal strength is strong (2+ bars) and the dome antenna is to be mounted on a ceiling.
This 72 db Sure-Call Fusion-5s 2.0 five-band signal booster device gives all cell phone users within range improved data speed and connectivity. It is a high quality device for use in areas of weak signal.
It is comparable to weBoost Connect 4G-X 471104 (4GX made by Wilson Electronics) or its newer version weBoost Home Complete 470145 or 474445 (installed version).
SureCall Fusion-5 S 2.0 Bands and Frequencies. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FREQUENCY | BAND 17 | 700 MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BAND 13 | 700 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BAND 5 | 850 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BAND 4 | 1700/2100 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BAND 25/2 | 1900 MHz |
Fusion5s 2.0 Specifications:
Frequency | Uplink: 698-716/776-787, 824-849/1850-1915, 1710-1755 Mhz G Block Included; Downlink : 728-746, 746-757, 869-894/1930-1995, 2110-2155 Mhz G Block Included |
---|---|
Input and Output Impedance | 50 ohm |
Average Gain | 65dB Cellullar / 72dB PCS |
Maximum Gain | 72 dB |
VSWR | XX |
Standard Supported | CDMA / WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
AC Power Transformer | Input AC 110V, 60Hz / Output DC 12V |
DC Power | 12V |
Maximum RF Output Power | 1 Watt EIRP |
Noise Figure | 6dB |
Cable | SC-400 |
RF connectors | N Female on both ends |
Power Consumption | <25W |
Dimensions | 9-1/4" x 6-3/8" x 1-3/8" |
Weight | 4 lbs. |
FCC (USA) | RSNEZBOOST5 / RSNFUSION5S-X20. |
Alternate Part #'s:
- SC-PolysH/O-72-OD2-KIT
- SCPolysH/O72OD2KIT
- SCPolysHO72OD2KIT
- SC-PolysH/O-72-OD2
- SCPolysH/O72OD2
- SCPolysHO72OD2
- PolysH/O-72-OD2-KIT
- PolysH/O72OD2KIT
- PolysHO72OD2KIT
- PolysH/O-72-OD2
- PolysH/O72OD2
- PolysHO72OD2
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I have identified this home signal booster unit model # SC-PolysH/O-72-OD2-KIT that I would like to buy. However, I would like to protect the system from lightning strikes that have been occurring in my area quite frequently (can global warming cause this?). Anyway, I just want to know the model number of the lighting surge arrestor to purchase for that system. It looks like I have an N connector on one side of the cabling with this kit and a F style connection on the other side. So I would need a lightning arrester that has one of each connector, I think.
The 50 Ohm lightning surge protector part model number SC-LP is for this SureCall Fusion 5s signal booster kit. Both its sides have N-female connectors so you can connect one side to the coax cable going into the building or home. You will also need a N-male to N-male connector (SC-CN-12), in order to connect exterior antenna pigtail to the surge protector.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
