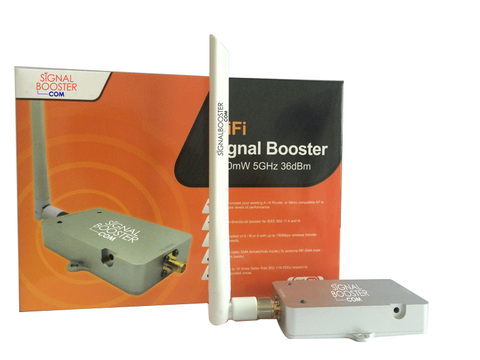

4-Watt / 36-dBm, 5.8 GHz Easy Install WiFi Signal Booster

4-Watt / 36-dBm, 5.8 GHz Easy Install WiFi Signal Booster

  • Regular price $350.00 USD Sale price$299.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: SH58Gi4000PAFC

Best Price Guarantee [1 2 3]

Call for FREE consultation:


Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning


Product Description

Delivering up to 4 watts of output power, this Wi-Fi antenna signal amplifier comes with a number of great features, which includes delivering up to 36 dB gain. This is a very powerful Wi-Fi antenna signal booster. Another bonus is that this Wi-Fi antenna signal booster operates on the 5.8 GHz frequency, which is the Internet network wireless range typically used in offices and homes. This product is an easy to install plug-and-play amplifier: simply connect the cable provided to any router or Wi-Fi modem. The booster also comes with a power adapter to connect to the boosting device.

When you only use a wireless router, users often experience poor signal strength and coverage; however, when that same wireless router is connected to a powerful Wi-Fi antenna signal booster like this one, you can be sure of achieving reliable, stronger, and wider range of signal. We know that cellular signals in home basements or on the second floor of a building can deteriorate due to the physical distance from the wireless modem, which makes this Wi-Fi antenna signal booster so very useful in many situations.

Designed specifically for bi-directional signal amplification, this powerful Wi-Fi antenna signal booster strengthens signal for both mobile applications and mesh wireless networking technologies. Mesh networks resolve coverage issues experienced in multi-floor homes or offices and in large single-floor areas of more than 1,000 ft². This is especially true when there's no available ethernet to enable simple wired connections of Wi-Fi Routers and non-mesh wireless access points.

Coverage Area.

It is important to note that a wireless signal amplifier cannot in itself generate a Wi-Fi signal; its only function is to amplify the existing Wi-Fi signal. This means that the coverage distance is entirely dependent on the output power of the Wi-Fi app/router. Based on the assumption that the power of a home router is typically somewhere between 14-16 dB and 20 dB, we estimate this Wi-Fi antenna signal booster kit would cover an area of between 3,000 and 5,000 ft².

Who Could Benefit from Using This Wi-Fi Antenna Signal Booster?

When you use a traditional analog amplifier, input signal fluctuations can negatively affect network performance and signal quality, causing saturation or a reduction in transmit power. However, this 5.8 GHz Wi-Fi antenna signal booster has the power to boost the signal reach of any antenna by a whopping 200% to 400%; all while still maintaining high data throughput rates.

The boosting functionality of this Wi-Fi antenna signal booster delivers a wider reaching signal and delivers better connectivity, adding up to 20 dB of transit gain and 14 dB of received gain. It’s important to note that cable lengths, environmental factors, and other interferences such as building materials may affect these figures.

Increased Power and Greater Signal Range.

This Wi-Fi Antenna Signal Booster with its small footprint and low-profile design is the ideal amplifier for space-restricted locations and for mounting on vehicles. In addition, this amplifier can be used for practically any 5.8 GHz antenna that requires an SMA Male connector, especially when you’re trying to achieve greater signal reach and improved power.

The booster has a maximum output power of 4,000mW, and is a full-kit Wi-Fi amplifier. Easy to install, this antenna signal booster for Wi-Fi networks is regarded as the most reliable signal amplifier available on the market today.

This powerful Wi-Fi antenna signal booster (4-Watt/36-DBm, 5.8 GHz) delivers reliable, strong, and extended coverage for a multitude of products and applications such as:

  • Bluetooth.
  • Hot Spot Solutions.
  • Homes and offices.
  • Hospitals.
  • Smart Home Systems.
  • Access points.
  • IP cameras (Internet).
  • Routers.
  • Robotics for beach and flood rescue.
  • Hotels.
  • Drones.
  • Supermarkets.
  • Walkie-talkies.
  • Parking spaces.
  • UAVs (unmanned aerial vehicles).
  • R/C cars, helicopters, and planes.

The Wi-Fi antenna signal booster kit includes the following:

  • Easy-to-follow user instruction manual.
  • 5.8 GHz Wi-Fi antenna signal booster.
  • 8-inch RG-316 cable, complete with SMA connectors.
  • 6dBi omni antenna.
  • power adapter.

How to Install the Wi-Fi Antenna Signal Amplifier.

Installation of the home Internet Wi-Fi antenna signal amplifier is not difficult. Just follow these simple steps:

  • Once you’ve removed the antenna from the AP router, connect the booster and router using the RG 316 cable provided.
  • Now connect the antenna to the other end of the booster and plug in the power adapter.
  • That's it – you're done!

This kit offers anti-interference. It comes in an aluminum-alloy case. With these and other features, it provides the best amplifying capability. Satisfaction is fully guaranteed or we will offer full refund within sixty days of purchase.

Technical Specifications:

Frequency Range 5000 ~ 5875 MHz.
Booster Power 4 Watts.
Channel width 20 MHz & 40 MHz & 80 MHz.
Supported standards IEEE 802.11a/ n.
Operation mode Bi-directional, half-duplex, time division duplex.
Connector type To modem/ router/ radio: SMA female (hole inside). To antenna: RP-SMA male (pin inside).
Output power 4000 mW or 4 Watt (36 dBm).
Input power 0 ~ 20 dBm.
Transmit gain 18 to 20 dB.
Receiver gain 11 ~ 14 dB.
Noise figure ≤ 3.5 dB (typical).
Frequency response ±1 dB over operating range.
Power adapter 12V/2A DC, 100~240V.
Cable Length, Type & Connectors 8 inches RG-316 cable with SMA connectors.
Omni Antenna Gain 6 dBi.
Operating temperature -20°C to +70°C.
Operating humidity Up to 75% relative humidity.
Material Cast aluminum.
LED lights Power status LED light. Activity status LED light.
WiFi Booster weight 0.21 lbs.
WiFi Booster dimensions: 3.39 x 2.01 x 0.71 inches.
Package weight 0.82 lbs.
Package size 8.39 x 5.31 x 2 inches.


Outdoor Application Scenarios:

  • Remote control of UAV: Allows drones to fly farther.
  • UAV real-time video and image transmission distance is farther and more stable.
  • Mine, railway Wi-Fi signal coverage.
  • City Wi-Fi coverage and point-to-point (PTP) WiFi long distance transmission; Wi-Fi detector in public places.
  • Intelligent manufacturing robot; such as robotic water rescue systems and advanced small unmanned surface vehicles.
  • Special frequency for industrial, medical, military equipment such as ISM frequency, etc.

Indoor Application Scenarios:

  • Smarthome: Control system host gateway; Zigbee, Bluetooth devices; Security monitoring system; Wi-Fi video intercom access control, etc.
  • Villa, hotel, home, office building Wi-Fi coverage.
  • Underground garage and basement Wi-Fi coverage.
  • Factory, manufacturing plant, business warehouse Wi-Fi coverage.
  • CVR wireless monitoring system.

Wi-fi amplifier is helpful in improving wi-fi connectivity in underground parking lot, hall, monitoring room, corridor:

Wifi booster is helpful in improving wifi connectivity in underground parking lot, hall, monitoring room, corridor

Wi-fi amplifier for better connectivity of security cameras, video bell, smart lights, smart door, etc.

Wifi booster for better connectivity of security cameras, smart lights, smart doors, etc.
