WiFi 4G LTE 5G Antenna 420 MHz to 6000 Mhz / 6 GHz

WiFi 4G LTE 5G Antenna 420 MHz to 6000 Mhz / 6 GHz

  • Regular price $500.00 USD Sale price$378.30 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: TMA-WB1AFC

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

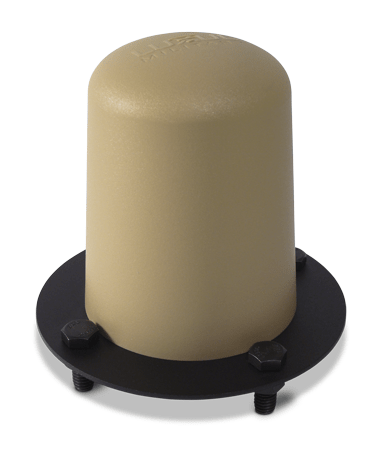

Military grade Wi-Fi, 4G, LTE, 5G Antenna covers wide-band / multi-band frequencies from 420MHz to 6000Mhz / 6GHz. This surface mounted multiband / wideband antenna can achieve a frequency between 420 megahertz and 6 gigahertz. It is hand-made by engineering team and currently being sold to USA military (allow 3 weeks for shipping). It is made in USA from manufactured UV stabilized polycarbonate substance. With a maximum power of 300 watts and an operating temperature between -40 degrees Celsius and 80 degrees Celsius, this wideband antenna can achieve peak gains in the following ranges:

  • 420 to 698 megahertz - 5 dBi.
  • 698 to 1850 megahertz - 3 dBi.
  • 1850 to 2400 megahertz - 5 dBi.
  • 2400 to 3700 megahertz - 6 dBi.
  • 3700 to 4900 megahertz - 7 dBi.
  • 4900 to 6000 megahertz - 8 dBi.

Specifications:

Frequency: 420 MHz to 6000 MHz.
Gain: See freq. & dB gain list above.
VSWR: 2:1 or less
Radome Material: UV Stabilized Polycarbonate.
Color: Desert Sand.
Nominal Impedance: 50 Ohms.
Maximum Power: 300 Watts.
Connector: "N" Jack.
Operational Temperature: -40 Degrees to +80 Degrees Centigrade.
RoHS: Compliant.
UPC: 697691000282.



Radiation Patterns:

450 MHz to 2150 MHz Antenna Radiation Pattern:

450 MHz to 2150 MHz Antenna Radiation Pattern

2450 MHz to 6000 MHz Antenna Radiation Pattern:

2450 MHz to 6000 MHz Antenna Radiation Pattern

Gain over Frequency Chart:

5G Antenna gain vs Frequency Chart

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles of your home / building. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
