Passive DAS Array In-Building Signal Improving Solution for Business

Today's Passive DAS (Distributed Antenna System) Array Solutions are a combination of key components that make it work. These components are: Quality Assurance, our industry-leading team of Design Engineers and Certified Integrators, and absolute best cellular signal boosting equipment available on the market today. When it comes to sustainable, high-quality interior cellular data and voice connectivity, there's no, "one size fits all" solution. Therefore, Passive DAS business cell phone signal booster kits are custom-designed and manufactured to meet or exceed the connectivity needs of your building. Following the installation and commissioning of our systems, our solutions are tuned to maximize longevity and system performance. Passive DAS Array In-Building Signal Improving Solution for Business are very sustainable and cost efficient systems, helping enterprises cover cellular coverage distributions of up to 250,000 ft.²

Key Advantages of Passive DAS Array Signal Improving Solutions.

  • These solutions are pre-approved for major carriers like Verizon Wireless, AT&T Wireless, Sprint, and T-Mobile.
  • They provide up to 70 dB maximum gain, without added expense or having to wait for carrier approval.
  • When compared to Active DAS, Passive DAS Array Solutions are quickly and professionally integrated at just a fraction of the cost.
  • These solutions are custom designed and manufactured to the specific needs of your building and its operating environment.
  • Passive DAS Array Solutions are tuned to maximize longevity and system performance without interfering with other wifi and mobile networks.

Reliable Cellular Coverage.

In order to deliver excellent cellular signal coverage, only the very highest-quality equipment and components are used in our Passive DAS. Examples of bi-directional amplifiers (BDA) include SureCall Force 5 2.0 and Wilson Pro 1050. Compatible with both single and multiple carrier environments, ours is a scalable solution that is sustainable and cost efficient.

Designed specifically to cause no interference to the mobile network, our Passive DAS is a cutting-edge solution that has been specifically engineered to enhance indoor cellular connectivity for data and voice. Serving as a transmitter between users within your building and carrier cell towers, our Passive DAS solution is a system comprising of (DA) Donor Antennas, (AMP) Amplifiers, and (BA) Broadcast Antennae.

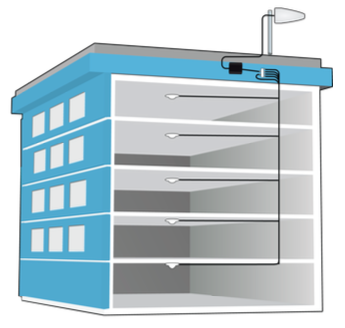

Connecting "Off Air" with the cell towers, the DA sends a signal to the Amps; the signal is then amplified, with the Amps distributing both power and RF (Radio Frequency) via coaxial cable to the BAs. That amplified donor signal is broadcast via the BAs to the interior of your building, supplying all cell devices with reliable cellular data and voice signal. Conveniently, since amplifiers and related components are FCC-approved, it is not necessary to seek carrier and/or FCC pre-approvals before installing your solution as long it is installed by our professionally trianed and certified installers.

The Required Site Survey.

Signal readings will be taken from both inside and outside the building. Then, using Google Earth's measurements of exterior dimensions of the building, we can quickly determine the square footage of interior of the building. In order to ensure installation provides consistent and reliable wireless coverage throughout interior spaces, building areas like production areas, warehouses, and office areas will be inspected.

Next, several exterior LTE -dB readings will be measured along the periphery of the roof to determine proposed location of the donor antenna. Thereafter, approximately 50 accurate signal readings will be taken in dB using our commercial grade signal meter at all designated internal weak signal locations, representing interior dB loss as compared to outside signal strength. Because dB power is logarithmic, the cellular signal within interior of the building could be more than four times weaker than the signal environment surrounding the building.

Planning to compensate for future unavoidable signal degradations.

During times of network congestion, bad weather, etc., further degradation of the signal within the building is expected. Such events impact cellular coverage in the production floor buildout, the office area, warehouse buildout, and other niche sections of the building where cell signals are required to be very good consistently. Radio frequencies can also be affected by everyday materials like glass, water, stone, and metal; which reflect the RFs on which cellular data and voice signals are transmitted. The problem is further exacerbated in manufacturing and production environments, simply due to the volume of material and equipment. Plus, if the building in question is situated on a major highway, Macro Network capacity issues will likely be experienced during the morning and evening rush hours.

Choose a Passive DAS Array Signal Boosting Solution.

In addition to current signal issues you may be facing, compensating for future possible further signal degradations as stated above, we recommend a robust Passive DAS Array Solution installed in the building. Powered by two Force5 2.0 or WilsonPro 4000R amplifiers, our Passive DAS Array Solution is a powerful Carrier Agnostic resolution in such instances because it has been specifically designed to excel in combinations of large office and manufacturing/ office and warehouse environments.

Should you have any queries at all about our Passive DAS Array Solutions, please don't hesitate to contact us. We look forward to resolving your cellular signal problem in your new building because we understand that, yes, signal is important, but it is not as important as the people working in and visiting your building who depend on reliable cellular signal.

Scope of Work.

Planning and Engineering.

  • Based on information provided by our client and the site survey completed by our team, the cellular signal assessment will be finalized.
  • Based on signal assessment, the client's connectivity needs, and data collected, the signal solution will be designed.
  • An engineering plan for the Interior Cellular Signal Solution will then be prepared.

Installation.

  • According to the engineering plan supplied, an RF cable will be installed from the rooftop to the installation sites for the amplifiers and broadcast antenna(s).
  • The coaxial in-line amplifiers will be installed.
  • Antenna mount hardware will be installed.
  • The donor antenna will be installed on the rooftop.
  • The signal amplifiers will be installed.
  • According to the engineering plan, the broadcast antennas will be installed.

Trim Out.

  • In-line coaxial amplifiers and RF coaxial cable connectors are trimmed out.
  • Exterior donor antenna is trimmed out to ensure maximum carrier signal.
  • Amplifier sites, cable runs, and broadcast antenna sites are trimmed out.

Quality Control Testing and Tuning.

  • Signal amplifiers are configured and commissioned as per solution design.
  • Broadcast antennas are tested to ensure reliable signal coverage and adherence to engineering design plan.
  • Overall operation of the system is tested.

Limitations.

The following limitations apply:

  • The building owner/ developer/ manager is charged with providing accurate CAD drawings to enable production of the engineering plans.
  • The building owner/ developer/ manager is charged with providing 120v/ 20amp dedicated electrical power.

Estimate for Carrier Agnostic Passive DAS Array Cellular Signal Amplifying Solution.

After you submit completed In-Building Signal Improving Solution Estimate Form for us to prepare an installation plan, you will receive an estimate for a Passive DAS cellular signal solution which will provide full interior cellular signal coverage for your building.

System Capabilities.

Providing coverage for Verizon, AT&T, T-Mobile and Sprint; and enabling cellular voice, data, and text, in coverage areas as per the installation plan.

Items Typically Included in the System:

Please see below for a list of items typically included in the PDAS Array signal improvement system. However, please note that this list may not be all-inclusive.

Services and Products provided by us.
  • Initial site survey followed by preparation of wireless signal solution design.
  • Amplification equipment capable of supporting up to 70 dB gain.
  • Plenum coaxial cabling plus required connectors.
  • Interior broadcast antenna and external donor antenna array.
  • Mounting hardware.
  • Integration of equipment.
  • System commissioning.
  • Calibration and tuning of system.
  • 3-year equipment warranty plus 1-year labor warranty.
Acceptance.

On acceptance of the proposal that will be presented, the customer would need to agree to pay us a deposit of 50% to enable commencement of the project. This amount will be deducted from the customer's final invoice for components, system parts, and integration of the system. The total amount charged for components, system parts, integration, and tax, will not exceed amount quoted in estimate on the provision that, after acceptance of this quotation, no changes are made to the installation plan and no alterations are made to the requested installation sites or coverage area.

Validity.

Please note that all quotes are valid for 30 days as per the submission date of the proposal. Figures and other relevant information provided to us by the building owner/ manager/ developer and/ or agents acting on their behalf, will be used to prepare the proposal. However, should any material discrepancy be discovered during the required site survey (and prior to the commencement of installation) we reserve the right to make appropriate changes to our signal enhancing solution design. Prior to the commencement of the project, these changes will be submitted to the building owner/ manager/ developer and/ or agents acting on their behalf, detailing the impact (if any) of such changes.

Disclaimer.

As of the date of proposal presentation, the cost estimate is based on data collected for any specific project and is provided in good faith. Every effort is taken in the preparation of the costing to ensure its accuracy. However, circumstances or material information beyond our control may be subject to change. Therefore, it should be noted that we will not be held liable or responsible for any regulation changes made by the United States Government, the FCC, changes in carrier's frequencies, State or Local Government, or any changes cellular carriers make that may affect the solution's performance.

In addition, we will not take responsibility for any signal improving system performance degradation caused by alterations by unauthorized persons to any part of the solution, alterations to the operating environment of the system following integration, natural disasters, Acts of God, or Acts of War, including, but not limited to, new constructions situated between the carrier cell towers and the building, and the addition of building materials such as wood panelling, metal ceilings, and/or tiled walls, to the building.

Should any alterations to the signal amplifying solution occur that could result in additional expenses, including expenses related to hardware, this information will be presented to the building manager/ owner/ developer, or agents acting on their behalf, prior to any work being undertaken.

The building manager/ owner/ developer, or agents acting on their behalf, will be provided with a proposal detailing any additional costs deemed necessary to cover the recommended action, enabling us to fix any problem not covered under an active Monitoring Support and Maintenance Contract. This includes, but is not limited to, a further site survey, changes to existing hardware, system analysis, or the introduction of new hardware.

Warranty.
  • There's a 1-year warranty covering all labor, beginning from the commissioning of the solution.
  • There's a 3-year warranty from equipment manufacturers, covering all hardware.

Conclusion.

Regardless of whether you need emergency signal solutions, or commercial, residential, or Government signal solutions, our professional certified integrators and design engineers are at your service, ready to resolve all your cell phone connectivity needs. Why not contact us today and let us help you?

Call for FREE consultation:

1(855)846-2654

Or request design & installation
estimate
to get started right away.
