3G 4G 5G (617-2700 MHz) Outdoor Omni-Directional Antenna (50 Ohm)

2G 3G 4G 5G (617-2700 MHz) Outdoor Omni-Directional Antenna

3G 4G 5G (617-2700 MHz) Outdoor Omni-Directional Antenna (50 Ohm)

  • Regular price $99.99 USD Sale price$84.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

Free Lifetime Support. SKU / Model: SC-588W

Best Price Guarantee [1 2 3]

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

Ultra-Wideband Outdoor Multi-Directional Omni Antenna.

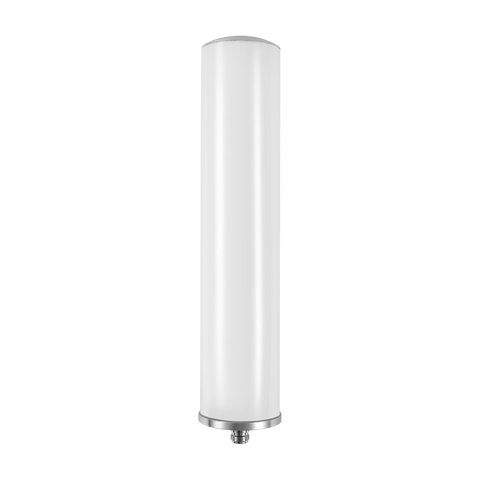

5G antenna designed for maximum flexibility with multiple carriers and cell towers in most environments. Consider 4G omni antenna version for almost half the price. This 5G SureCall Omni Antenna is an omni-directional fiberglass outdoor antenna. It operates in a 360° field of propagation with a range of up to 30 miles. This Ultra-Wideband outdoor antenna transmits and receives signals in all directions.

It is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. 1.5 / 2 / 4 dBi Max Gain. N-Female connector. 50 Ohm. Ultra-Wideband: 617 - 2700 MHz. 5G Band 71 compatible that includes T-Mobile 5G Sub-6 Frequency. Wall mount or pole mount. Includes mounting hardware. Part Number: SC588W. UPC: 854328008435.

  • Ultra-wideband: 2G, 3G, 4G, 5G (617 - 2700 MHz) outdoor omni-directional antenna.
  • 1.5 /  2 /  4  dBi Max Gain.
  • N-Female connector (50 ohm).
  • Includes mounting hardware.
  • Connects with SC-400 cable (sold separately).
  • Mount upright using included mounting hardware.
  • Easy to Install.

Installation.

This omni antenna is omni-directional, which receives and sends signals in a 360 degrees radius. The provided hardware allows for either a surface mount or pole-mount. This 5G antenna should be mounted in an upright position.

Option A - Mounting antenna to a vertical surface:

  1. Using vertical plate of bracket, mark position of desired placement.
  2. Unscrew nut on end of stucco screw and remove it along with lock washer and regular washer.
  3. Place vertical plate into desired location and tap the screws, head-first, along with the sleeve into stucco with depth of 1/2 inches to 5/8 inches.
  4. In this order, place washer, lock washer, and nut on each screw and tighten until secure. When tightening screw, sleeve will expand to secure plate.
  5. Use provided screws to secure antenna base onto horizontal plate.
  6. Connect antenna to cable connector for the outdoor cable provided with your kit and run along route to planned location of your booster.

Note: If desired surface for installation is wood or concrete, wood or masonry screws for L-plate mounting will have to be purchased separately.

Option B: Mounting antenna to Mast / Pole - For illustration of this option, please see 5G Ultra Wide Band Outdoor Omni Antenna Data Sheet.

Compatibility,

Phone Booster Compatibility: All brands 50 Ohm cell boosters kits including SureCall 2G-5G home and industrial in-building signal boosters. Cable Compatibility: Low coax cables with N Male on either end (SC400, SC240, etc). Accessory Compatibility: All 2G-5G cable couplers and 2G-5G cable splitters.

5G Omni Outdoor Antenna Specs.:

Frequency: 617-697 / 698-960 / 1710-2700 MHz.
Beamwidth: H:360° E:60°/ H:360° E:55°/ H:360° E:40°.
Max. Gain: 1.5 / 2 / 4 dBi.
VSWR: < 2.
Input Impedance: 50 Ohm.
Polarization Type: Vertical.
Max Power: 100W.
Radiation Pattern: Omni-Directional.
Connector Type: N-Female.
Dome Diameter: 60 mm.
Dimensions: 12.8 x 2.56 inches.
Weight: 1.55 Ibs.
Cover Material: Fiberglass (White).
Operating Temp. (degrees fahrenheit): -22 ~ +176.
Operating Humidity: 5% to 95%.



Other 5G Band 71 Covering Exterior Antennas Available:

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • Input Correct Captcha

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles of your home / building. Please check outside signal level in decibels before ordering. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

If it is too weak, submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

Please note: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
