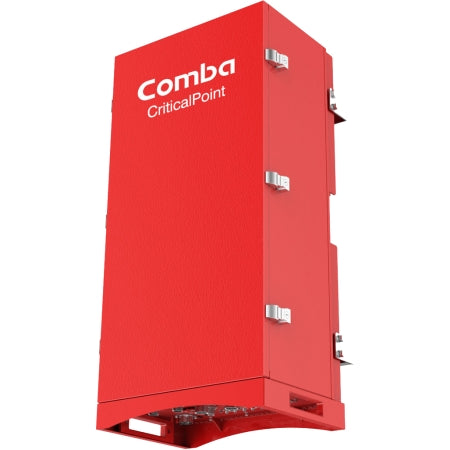

Comba Public Safety 5W Class A UHF Single Sub-Band BDA (AC) 1 Window Passband

Comba Public Safety 5W Class A UHF Single Sub-Band BDA (AC)

Comba Public Safety 5W Class A UHF Single Sub-Band BDA (AC) 1 Window Passband

    Best Price Guarantee. [1, 2, 3]
    • Product Url
    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • This field is required. Please enter a value.

    • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

    No Payments + No Interest if paid in full within 6-12 months. Choose Klarna's buy now, pay later option at checkout for these details and other low interest financing options. Learn more.

    Free Lifetime Support. SKU / Model: RXUHF-A36AC-1WA

    Best Price Guarantee [1 2 3]

    Call for FREE consultation:

    1(855)846-2654

    Need installation quote, or help with designing a custom solution? Submit a request for quote.

    • Description
    • Reviews
    • Questions & Answers
    • Make An Offer
    • Warning

    Description

    Product Description

    Comba CriticalPoint Public Safety Class A 5W, duplexed single sub-band BDA (RXUHF-A36AC-1WA) is AC powered and provided with 1MHz passband ranging from 470MHz to 512MHz or 2MHz passband of between 450MHz and 470MHz. Note that you need to indicate the exact passband you want when making your order.

    This Comba Critical Point UHF Class A BDA also supports narrow band filters up to 32 and typical analog and digital P25 P1/P1 communications concurrently. Also supported include SNMP intelligent web-based GUI configuration and internal duplexing and simplex. Integral oscillation prevention isolation test is also included, as well as minimum noise guaranteed by PA uplink shutdown. Uplink squelch channelization and ALC (Auto Level Control) channelization are also supported.

    Summary:

    Comba Telecom's Critical-Point RXUHFA36AC1WA is a Class A, AC powered, single sub-band, duplexed BDA. Can be provided with either a 2 MHz passband from 450-470 MHz or a 1 MHz passband from 470-512 MHz. Specify exact passband when ordering. This is a powerful UHF Public Safety Bi-Directional Amplifier purchase.

    Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).

    Highlights:

    • 36 dBm Composite Power Downlink.
    • 30 dBm Composite Power Uplink.
    • 0-30 GAR [Gain Adjustment Range (dB)].
    • 32 Channels.
    • -33-60 degrees centigrade range.
    • Weighs 77.0 lbs.
    • Measures 15.4 inches Width by 12.4 inches Length by 31.5 inches Height.
    • Type N-Female connectors.

    Features:

    • Supports P25 P1/P2 digital and conventional analog communications simultaneously.
    • Simplex and internal Duplexing supported.
    • Up to 32 narrow band filters.
    • Channelized Auto Level Control (ALC) supported.
    • Channelized uplink squelch supported.
    • Uplink PA shutdown bring the minimum noise for Base Station.
    • Built-in mandatory isolation test to prevent BDA oscillation.
    • Web based GUI for intelligent configuration, SNMP supported.
    • NFPA 1221 / IFC compliant dry contact alarms.
    • NFPA 1221 / IFC compliant NEMA 4 enclosure.

    Technical Specifications:

    Manufacturer: Comba Telecom, Inc.
    Bands Supported: UHF.
    Composite Power Downlink: 36 dBm.
    Composite Power Uplink: 30 dBm.
    Gain Adjustment Range (dB): 0-30.
    Item Height: 31.5 inches.
    Number of Channels: 32.
    Temperature Range: -33-60 degrees centigrade.
    Item Weight: 77.0 lbs.
    Item Width: 15.4 inches.
    Qty/ Uom: 1 each.
    RF Connectors: Type N-Female.
    Item Length: 12.4 inches.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety BDA installation service questionnaire for a quote if you require professional installation and assistance with BDA design, consent and approval process by certified public safety BDA installers.
