    Description

    Product Description

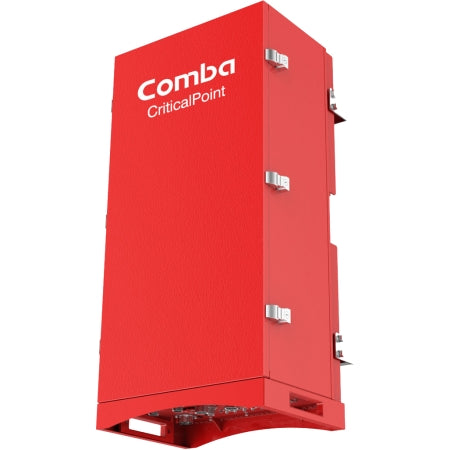

    Comba Public Safety CriticalPoint duplexed, dual sub-band, Class A BDA (RXUHF-A36AC-2WA or RXUHF-A36AC-3WA) is AC powered and provided with either of the following:

    • Passband of 2MHz from 450MHz to 470MHz including passband of 1MHz from 470MHz and 512MHz.
    • 2.0MHz+2.0MHz within the 450MHz and 470MHz window guard-window band larger than 3.0MHz.
    • 1.0MHz+1.0MHz within the 470MHz and 512MHz window-window guard band more than 2.0MHz.

    While ordering, ensure the passbands are specified clearly. The Bi-Directional UHF Public Safety Comba CriticalPoint amplifier also supports typical analog and digital P25 P1/P2 communications concurrently. Also supported include SNMP intelligent configuration in web-based GUI and mandatory oscillation prevention isolation test in-built in the system. Minimum noise is guaranteed by a PA uplink shutdown while an uplink squelch channelization is also supported. Others include ALC (Auto Level Control) channelization supporting narrow band filters up to 32. Internal duplexing and simplex are also supported.

    Summary:

    Comba Telecom RXUHFA36AC2WA or RXUHFA36AC3WA is a Public Safety Critical Point series Class A, AC powered, dual sub-band, duplexed BDA.

    Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).

    Highlights:

    • 36 dBm Composite Power Downlink.
    • 30 dBm Composite Power Uplink.
    • 0-30 GAR [Gain Adjustment Range (dB)].
    • Measures 31.5 inches (height) by 12.4 inches (length) by 15.4 inches (width).
    • 32 Channels.
    • -33-60 degree C range.
    • Weighs 77.0 lbs.
    • Type N-Female connectors.

    Features:

    • Supports P25 P1/P2 digital and conventional analog communications simultaneously.
    • Simplex and internal Duplexing supported.
    • Up to 32 narrow band filters.
    • Channelized Auto Level Control (ALC) supported.
    • Channelized uplink squelch supported.
    • Uplink PA shutdown bring the minimum noise for Base Station.
    • Built-in mandatory isolation test to prevent BDA oscillation.
    • Web based GUI for intelligent configuration, SNMP supported.
    • NFPA 1221 / IFC compliant dry contact alarms.
    • NFPA 1221 / IFC compliant NEMA 4 enclosure.

    Technical Specifications:

    Manufacturer: Comba Telecom, Inc.
    Composite Power Downlink: 36 dBm.
    Composite Power Uplink: 30 dBm.
    Gain Adjustment Range (dB): 0-30.
    Item Height: 31.5 inches.
    Number of Channels: 32.
    Temperature Range: -33-60 degrees centigrade.
    Item Weight: 77.0 lbs.
    Item Width: 15.4 inches.
    Qty/ Uom: 1 each.
    RF Connectors: Type N-Female.
    Item Length: 12.4 inches.



    WARNING:

    Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety BDA installation service questionnaire for a quote if you require professional installation and assistance with BDA design, consent and approval process by certified public safety BDA installers.
