Description

Product Description

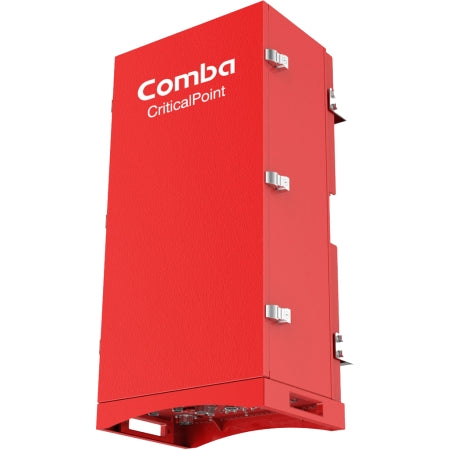

Comba Critical Point Public Safety 5W Class A duplexed single sub-band UHF BDA (manufacturer SKU RXUHFA36AC1WB) is AC powered unit provided with 1.5MHz passband of between 470MHz and 512MHz or 2.5MHz passband ranging between 450MHz and 470MHz. When making your order, do indicate the specific passband required.

UHF single sub-band BDA also supports conventional analog and digital P25 P1/P2 communications at the same time. Narrow band filters are up to 32. Also supported include uplink channelized squelching and internal duplexing and simplex. ALC (Auto Level Control) channelizing is also supported, including a base station PA uplink shutdown to lower the noise completely. Oscillation on the UHF BDA is prevented by a mandatory integral isolation test. SNMP support ensures intelligent configuration in web-based GUI.

Summary:

Comba Telecom RXUHF-A36AC-1WB is from its Public Safety CriticalPoint series BDAs. It is a Class A, AC powered, single sub-band, duplexed BDA. Can be provided with either a 2.5 MHz passband from 450-470 MHz or a 1.5 MHz passband from 470-512 MHz. Specify exact passband when ordering. Comba CriticalPoint UHF Public Safety Bi-Directional Amplifier.

Compliances: NFPA 1221/IFC (dry contact alarms) and NFPA 1221/IFC (NEMA 4 enclosure).

Highlights:

  • 36 dBm Composite Power Downlink.
  • 30 dBm Composite Power Uplink.
  • 0-30 GAR [Gain Adjustment Range (dB)].
  • Measures 31.5 inches (height) by 12.4 inches (length) by 15.4 inches (width).
  • 32 Channels.
  • -33-60 degree C range.
  • Weighs 77.0 lbs.
  • Type N-Female connectors.

Features:

  • Supports P25 P1/P2 digital and conventional analog communications simultaneously.
  • Simplex and internal Duplexing supported.
  • Up to 32 narrow band filters.
  • Channelized Auto Level Control (ALC) supported.
  • Channelized uplink squelch supported.
  • Uplink PA shutdown bring the minimum noise for Base Station.
  • Built-in mandatory isolation test to prevent BDA oscillation.
  • Web based GUI for intelligent configuration, SNMP supported.
  • NFPA 1221 / IFC compliant dry contact alarms.
  • NFPA 1221 / IFC compliant NEMA 4 enclosure.

Technical Specifications:

Manufacturer: Comba Telecom, Inc.
Composite Power Downlink: 36 dBm.
Composite Power Uplink: 30 dBm.
Gain Adjustment Range (dB): 0-30.
Item Height: 31.5 inches.
Number of Channels: 32.
Temperature Range: -33-60 degrees centigrade.
Item Weight: 77.0 lbs.
Item Width: 15.4 inches.
Qty/ Uom: 1 each.
RF Connectors: Type N-Female.
Item Length: 12.4 inches.



WARNING:

Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety BDA installation service questionnaire for a quote if you require professional installation and assistance with BDA design, consent and approval process by certified public safety BDA installers.
