Description
Product Description
DSureCall Fusion-5X 2.0 Canada Talk, 3G, 4G, LTE Home & Building cell phone signal booster kit is an ideal solution for large residences and mid-sized buildings.
SureCall Fusion 5X 2.0 is the Canadian version of USA Fusion 5X 2.0 mobile phone signal booster kit. A downlink power comparison between the Fusion5X 2.0 and two leading competitive boosters shows that Fusion5X 2.0 has more DP than the Pro 70 in all 5 bands and the Pro 1000 in 3 out of 5 bands. Fusion 5 X 2.0 MSRP: CAD $1499 (great value proposition over the more expensive / under-performing competitors). SureCall IQ ensures Fusion5X 2.0 will not overpower or shut down due to a strong outside signal.
SureCall Fusion 5X 2.0 Canada Features & Highlights:
- Improves cell phone talking, texting and 4G LTE mobile data signals inside large residences and mid-size buildings.
- Max downlink power of +16 dBm delivers 2X more coverage area than the closest competitor.
- Built in SureIQ Technology - Provides 24/7 uptime by eliminating shut-downs caused by overpowering.
- Enhances signal for mobile devices operating on all North American cellular networks.
- Compatible with SureCall Sentry for remote monitoring.
- Industry Leading Manufacturers Warranty of 3 Years.
For configurations to boost coverage for all sizes of indoor environments, kits are available with an Omni or Yagi outdoor antenna and either 1 or 4 indoor Dome or Panel antenna options as shown in above drop-down menu or detailed below:
-
Fusion5X 2.0 Omni / Dome Kit: SureCall Fusion5X 2.0 Omni / Dome cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, 75 ft. and 100 ft. lengths of SureCall low loss SC-400 coax cables, outdoor omni antenna and indoor dome antenna. Part # SC-Fusion5X2-OD or SC-PolyX2-72-OD. UPC: 858507006953.
-

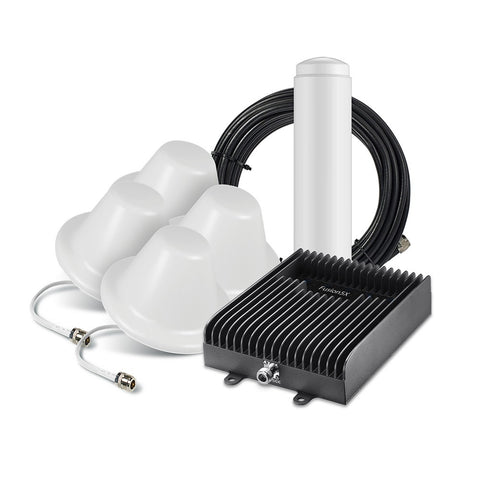

Fusion5X 2.0 Omni / 4 Dome Kit: SureCall Fusion5X 2.0 Omni / 4 Dome cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, five 75 ft. lengths of SureCall low loss SC-400 coax cables, 4-way splitter with connecting cable, outdoor omni antenna and four indoor dome antennas. Part # SC-Fusion5X2-O4D or SC-PolyX2-72-O4D. UPC: 858507006984.
-
Fusion5X 2.0 Omni / Panel Kit: SureCall Fusion5X 2.0 Omni / Panel cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, 75 ft. and 100 ft. lengths of SureCall low loss SC-400 coax cables, outdoor omni antenna and indoor panel antenna. Part # SC-Fusion5X2-OP or SC-PolyX2-72-OP. UPC: 858507006960.
-
Fusion5X 2.0 Omni / 4 Panel Kit: SureCall Fusion5X 2.0 Omni / 4 Panel cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, five 75 ft. lengths of SureCall low loss SC-400 coax cables, 4-way splitter with connecting cable, outdoor omni antenna and 4 indoor panel antennas. Part # SC-Fusion5X2-O4P or SC-PolyX2-72-O4P. UPC: 858507006991.
-
Fusion5X 2.0 Yagi / Dome Kit: SureCall Fusion5X 2.0 Yagi / Dome cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, 75 ft. and 100 ft. lengths of SureCall low loss SC-400 coax cables, outdoor Yagi antenna and indoor dome antenna. Part # SC-Fusion5X2-YD, SC-PolyX2-72-YD or PolyX272YD. UPC: 854328008060.
-
Fusion5X 2.0 Yagi / 4 Dome Kit: SureCall Fusion5X 2.0 Yagi / 4 Dome cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, five 75 ft. lengths of SureCall low loss SC-400 coax cables, 4-way splitter with connecting cable, outdoor Yagi antenna and 4 indoor dome antennas. Part # SC-Fusion5X2-Y4D or SC-PolyX2-72-Y4D. UPC: 854328008039.
-
Fusion5X 2.0 Yagi / Panel Kit: SureCall Fusion5X 2.0 Yagi / Panel cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, 75 ft. and 100 ft. lengths of SureCall low loss SC-400 coax cables, outdoor Yagi antenna and indoor panel antenna. Part # SC-Fusion5X2-YP or SC-PolyX2-72-YP. UPC: 854328008053.
-
Fusion5X 2.0 Yagi / 4 Panel Kit: SureCall Fusion5X 2.0 Yagi / 4 Panel cell phone signal booster kit includes a Fusion5X 2.0 amplifier with +16 dBm downlink power, five 75 ft. lengths of SureCall low loss SC-400 coax cables, 4-way splitter with connecting cable, outdoor Yagi antenna and four indoor panel antennas. Part # SC-Fusion5X2-Y4P or SC-PolyX2-72-Y4P. UPC: 854328008022.
This Cellphone Mate/ Sure Call Fusion-5X Canada 2.0 kit also fills the gap between the Fusion5s and the Force5 models and does not include knobs. Instead, sophisticated software automatically controls the gain ensuring the Sure Call booster is operating at max performance at all times. It also provides up to 72 dB Gain in signal reception. Sure Call Fusion 5 X cell phone signal booster kit encompasses and boosts signals on five bands. It provides tens of thousands of square feet of coverage based on antenna combinations chosen, structure of building, and outside signal strength. It boosts reception for all Canadian carriers voice, text and 4G LTE signals. Carrier networks covered include Rogers Wireless, Freedom Mobile, Telus Mobility and Bell Mobility.
It is very reasonably priced to boost maximum possible area for lowest cost per square foot when compared to other booster kits or DAS (Distributed Antenna Systems). It is compatible with Sentry Remote Monitoring System. It boosts reception to up to 15 simultaneous users or mobile connections. It works just the same for all cell phone manufacturer brands.
SureCall Fusion 5 X Overview:
- +16 dBm downlink power for 2X more coverage area than the competition.
- Reduces dropped and missed calls and improves 4G LTE Data Speeds.
- Increases signal strength & extends battery life for all cellular devices.
- SureIQ™ technology balances incoming signals, preventing shutdown and maximizing performance in strong signal environments.
- Configurable for all indoor environments - Coverage for large buildings with tens of thousands of square feet.
- Practically unlimited coverage area with multiple antennas and amplifiers that can be configured.
- Compatible with SureCall Sentry™ for seamless remote monitoring.
- Industry best 3-year warranty and lifetime US-based tech support.
Which type of interior antenna(s) to choose?
Dome internal antennas are suggested when coverage needed inside the home or building is in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting. See diagram image of installation sketch provided showing 4 dome antennas installed.
Panel internal antennas are suggested when coverage needed inside the home or building is across long rectangular spaces like a corridor and/or multi levels. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floors below as well. In-building unidirectional panel antennas allow for optimum reception to targeted areas. See diagram image of installation sketch provided showing 4 panel antennas installed.
Signals being able to penetrate walls depends on the strength of incoming signal to the booster and the construction material of the walls.
Which type of exterior antenna to choose?
Omni external antenna (360 degree beam-width) is best used used when the outside signal strength is -85 dBm or stronger. It catches signal from all cell towers of all cell carriers from all directions but it is not as powerful as the Yagi antenna. Therefore, it is ideally used in places with existing good to strong cell phone signal signal strength.
Yagi external antenna (60 degree beam-width) is best used when the outside signal strength is -86 dBm or weaker. It catches signal from one specific direction where it is pointed to. It focuses signal attraction from a particular cell tower much farther away than omni antenna can attract. Therefore, it is ideally used in places with existing weak cell phone signal signal strength.
The closer the signal is to 0, the stronger the signal. For example -75 dBM is a stronger signal than -85 dBM.
Should I choose kit with one or four interior antennae?
Booster kits with multiple indoor antennas are best used to increase coverage on multiple floor levels, expansive single story and/or densely constructed buildings. i.e. internal concrete walls.
SureCall Fusion 5X 2.0 Canada cellphone signal booster kit boosts 2G, 3G, 4G LTE indoor cell signals and is compatible with all Canadian wireless service providers.
Fusion5X 2.0 Signal Amplifier Specifications:
Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included). |
---|---|
Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included). |
Supported Standards: | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all mobile network standards. |
Input/Output Impedance: | 50 Ohm. |
Maximum Gain: | 72 dB. |
Noise Figure: | 8 dB. |
VSWR: | ≤2.0. |
AC Input: | Input AC 110 V, 60 Hz / Output DC 12 V. |
Maximum Output Power: | 1 Watt EIRP. |
Downlink Power: | +16 dBm. |
Cable: | SC-400 / SC-240. |
RF Connectors: | N-Female (both ends). |
Power Consumption: | <25W |
Operating Temperature: | -4ºF to +158ºF. |
Dimensions: | 9.25" x 6.375" x 1.375" |
Weight: | 4 lb 4 oz |
Alternate Part #'s:
- SCFusion5X2OD
- SCFusion5X2O4D
- SCFusion5X2OP
- SCFusion5X2O4P
- SCFusion5X2YD
- SCPolyX272YD
- PolyX272YD
- SCFusion5X2Y4D
- SCFusion5X2YP
- SCFusion5X2Y4P
- SC-PolyXH/O-72
- SCPolyXH/O72
- SCPolyXHO72
- PolyXH/O-72
- PolyXH/O72
- PolyXHO72
Commercial booster includes outdoor yagi antenna and indoor panel antenna. Automatic Gain/ Attenuation Control - No Knobs. Up to 20,000 sq. ft. indoor coverage potential with strong outside signal. N-Female Connectors. All required parts needed for complete installation included with this kit. Must be installed by professional installer.
For Canada:
This is a consumer device.
- BEFORE USE, you must meet all requirements set out in CPC-2-1-05.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST NOT be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by ISED or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- In addition, Consumer Zone Enhancers certified for fixed operation such as this may operate in a fixed location only, for in-building use.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Is there someone to talk to, to make sure I order the right kit?
Yes, absolutely, please reply with your phone number so one of our representatives can give you a call. Thank you.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
