SureCall Fusion 5X w/ Omni + 4 Indoor Dome | SC-Poly5X-72-OD4-Kit
SureCall Fusion 5X w/ Omni + 4 Indoor Dome | SC-Poly5X-72-OD4-Kit
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-Poly5X-72-OD4-Kit
SureCall Fusion 5x cell phone booster for big buildings with outdoor omni directional antenna plus 4 indoor multi-directional Dome shaped antennae:
- Reduces dropped and missed calls. Improves 3G and 4G data speeds.
- Automatic dB gain/attenuation optimizes booster performance.
- Maximum reception strength gain, uplink and downlink power.
- Coverage for large buildings and warehouses, up to 20,000 Sq. Ft.
- Supports up to 15 users with multiple wireless devices, simultaneously.
- Expand indoor coverage further by purchasing add'l in-building antenna kits that include required cables and splitter to connect to this booster kit.
- Boosts voice, text, 3G, 4G reception of all U.S. cell providers. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit.
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
SureCall Fusion 5X Booster w/ Outdoor Omni + 4 Indoor Dome for 20,000 Ft² (USA).
Please note that if you purchase this Fusion 5X, you will be sent the Fusion 5X 2.0 amplifier kit which is a newer version of this same cell signal booster kit.
SureCall Fusion 5X Voice, 3G, 4G, LTE Home & Building signal booster kit with an omni-directional outdoor antenna and 4 indoor Dome antennas boost reception to up to 20,000 sq. ft. SureCall Fusion5X's omnidirectional exterior antenna draws signal from all directions, and from all United States carrier cell towers in the vicinity.
Four dome interior antennae distribute boosted reception from Fusion 5x amplifier in all directions. Cellphone Mate/ Sure Call Fusion 5X fills the gap between the Fusion 5s and the Force 5 models. SureCall's Fusion5X is the first booster from Cellphone-Mate/ Sure-Call that does not include knobs! Instead, sophisticated software automatically controls the gain ensuring the booster is operating at max performance at all times.
SureCall Fusion 5-X provides up to 72 dB Gain in signal reception. Sure Call Fusion 5 X cell phone signal booster kit encompasses and boosts signals on five bands. It provides up to 20,000 square feet of coverage. It boosts reception for all U.S. American carriers voice, text, 3G, and 4G LTE signals. USA wireless carriers include AT&T, Verizon, Sprint, and Tmobile. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit. It is very reasonably priced to boost maximum possible area for lowest cost per square foot when compared to DAS (Distributed Antenna Systems). It is compatible with Sentry Remote Monitoring System. It boosts reception to up to 15 simultaneous users or mobile connections.
What does this booster kit include?

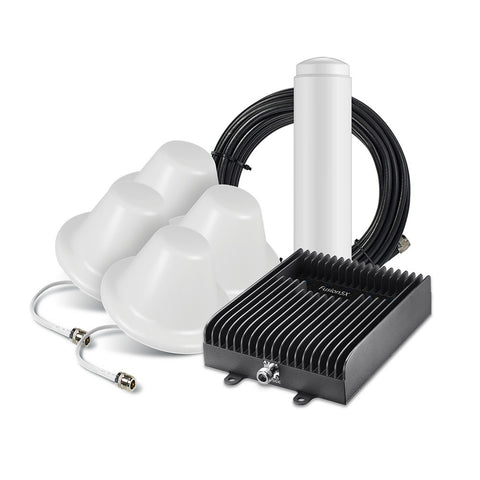

This powerful amplifier Kit includes installation hardware and parts that include five 75 feet and one 30 feet lengths of SureCall SC-400 low loss coax cable, 4-way splitter, outdoor Omni antenna and four indoor Dome antennas.
Here're more details:
SureCall Fusion5 X Omni Exterior Antenna with Four DOME Interior Antennas (part # SC-Poly5X-72-OD4-Kit).

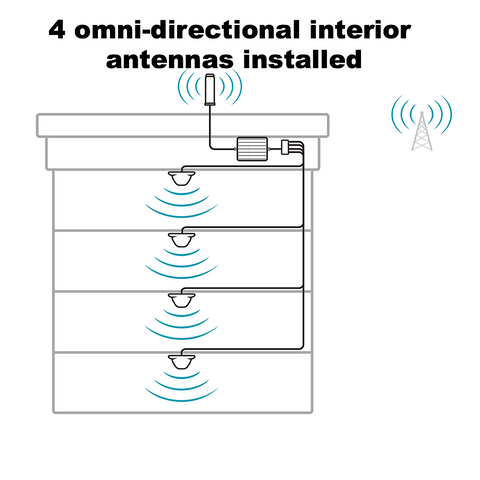

Four Dome internal antennas as included in this kit are suggested when coverage needed inside the home or building is in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting. See diagram image of installation sketch provided showing 4 dome antennas installed.
Fusion-5X Omni 4 Domes Part Numbers Included:
SKU: SC-Poly5X-72-OD4-Kit. UPC: 858507006182.
Outdoor Omni Antenna.
SC-222W (x 4).
Indoor Dome Antenna.
SC-001-75 (x 5).
SC400 Cable, 75 ft.
SC400 Cable, 30 ft.
They have been kitted exclusively with 4 internal antennas for a few reasons:
- This gives an installer flexibility to customize installations to meet a variety of needs inside of commercial buildings and large homes.
- Instills confidence in the installer that he has enough gear to complete an install on the first visit.
- Happy installer = Happy end-user.
- Boosts voice, text and 4G LTE signals for all American cell carriers.
- Reduces dropped & missed calls and improves 4G LTE data speeds.
- Increases signal strength & extends battery life for all cellular devices.
- Supports multiple users simultaneously.
- Covers a very large home or commercial building to up to 20000 sq. ft. depending upon outside signal strength.
This 2G, 3G, 4G LTE indoor cell signal booster kit is compatible with following U.S.A. wireless service providers:
|American Service Providers|
|Virgin Mobile USA.|
SureCall Fusion 5X Specifications:
|Uplink Frequency Range (MHz):||698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)|
|Downlink Frequency Range (MHz):||728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)|
|Supported Standards:||CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards|
|Input/Output Impedance:||50 Ohm|
|Maximum Gain:||72 dB|
|Noise Figure:||8 dB|
|AC Input:||Input AC 110 V, 60 Hz / Output DC 12 V|
|Maximum Output Power:||1 Watt EIRP|
|Downlink Power:||10 dBm|
|RF Connectors:||N-Female (both ends)|
|Dimensions:||9.25" x 6.375" x 1.375"|
|Weight:||4 lb. 4 oz.|
|SureCall Fusion5x Bands and Frequencies.|
|FREQUENCY||BAND 17||700 MHz|
|BAND 13||700 MHz|
|BAND 5||850 MHz|
|BAND 4||1700/2100 MHz|
|BAND 25/2||1900 MHz|
Alternate Part #'s:
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
