SureCall Fusion5X w/ Omni + Panel | SC-Poly5X-72-OP-KIT
SureCall Fusion5X w/ Omni + Panel | SC-Poly5X-72-OP-KIT
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-Poly5X-72-OP-KIT
SureCall Fusion 5x cell phone booster for big buildings with outdoor omni-directional antenna and an indoor directional Panel antenna:
- Reduces dropped and missed calls. Improves 3G and 4G data speeds.
- Automatic dB gain/attenuation optimizes booster performance.
- Maximum reception strength gain, uplink and downlink power.
- Coverage for large buildings and warehouses, up to 10,000 Sq. Ft.
- Supports up to 15 users with multiple wireless devices, simultaneously.
- Boosts voice, text, 3G, 4G reception of all U.S. cell providers. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit.
- Expand indoor coverage further by purchasing add'l in-building antenna kits that include required cables and splitter to connect to this booster kit.
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
SureCall Fusion5X Signal Amplifier w/ Outside Omni + 1 Inside Panel for USA 20k Ft².
SureCall Fusion5X Signal Amplifier with an omni-directional outside antenna and one inside Panel antenna boosts reception to up to 20,000 sq. ft. SureCall Fusion 5X's omni directional exterior antenna draws signal from all directions, and from all USA carrier cell towers in the vicinity.
One panel interior antenna distributes boosted reception from Fusion 5x amplifier uni-directionally in a targeted fashion. Cellphone Mate/ Sure Call Fusion 5X fills the gap between the Fusion 5s and the Force 5 models. SureCall's Fusion-5X is the first booster from Cellphone-Mate/ Sure-Call that does not include knobs! Instead, sophisticated software automatically controls the gain ensuring the cell amplifier is operating at maximum performance at all times.
SureCall Fusion5X provides up to 72 dB Gain in signal reception. Sure Call Fusion 5 X cell phone signal amplifier kit encompasses and boosts signals on five bands. It provides up to 20,000 square feet of coverage. It boosts reception for all US American carriers voice, text, 3G, and 4G LTE signals. U.S.A. cellular carriers include AT&T Wireless, Verizon, Sprint, and T-Mo. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit. It is very reasonably priced to boost maximum possible area for lowest cost per square foot when compared to Distributed Antenna Systems (DAS). It is compatible with Sentry Remote Monitoring System. It boosts reception to up to 15 simultaneous users or mobile connections.

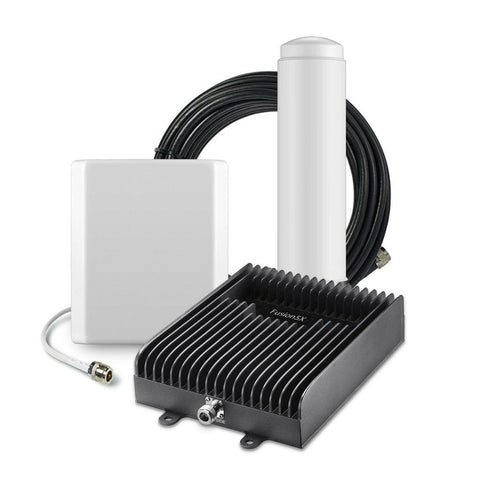

What does this booster kit include?
SC-Poly5X-72-OP-Kit includes an outdoor Omni-directional antenna with 1 indoor Panel uni-directional or targeted antenna that target signal in a single direction along corridors, hallways or even lower floors if mounted on ceilings.
This powerful cell amplifier Kit includes one 75 ft. cable and one 30 ft. lengths of SureCall 400 low loss coax cable, outdoor Omni antenna and one indoor panel antenna.
Here're more details:
SureCall Fusion 5X Omni Exterior Antenna with One PANEL Interior Antennas (part # SC-Poly5X-72-OP-KIT).
One Panel internal antenna with this kit are suggested when coverage needed inside the home or building is up to 20,000 sq. ft. and across long rectangular spaces like a corridor and/or multi levels. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floors below as well. In-building unidirectional panel antennas allow for optimum reception to targeted areas.
Fusion-5-X Omni 1 Panels Part Numbers Included:
Fusion 5X Booster.
Outdoor Omni Antenna.
Indoor Panel Antenna.
SC400 Cable, 75 ft.
SC400 Cable, 30 ft.
- Boosts voice, text and 4G LTE signals for all U.S. American cell carriers.
- Reduces dropped & missed calls and improves 4G LTE data speeds.
- Increases signal strength & extends battery life for all cellular devices.
- Supports multiple users simultaneously.
- Covers a very large home or commercial building to up to 10000 sq. ft. depending upon outside signal strength.
This 2G, 3G, 4G LTE indoor cell signal booster kit is compatible with following U.S.A. wireless service providers:
|American Service Providers|
|Virgin Mobile USA.|
SureCall Fusion 5X Specifications:
|Uplink Frequency Range (MHz):||698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)|
|Downlink Frequency Range (MHz):||728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)|
|Supported Standards:||CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards|
|Input/Output Impedance:||50 Ohm|
|Maximum Gain:||72 dB|
|Noise Figure:||8 dB|
|AC Input:||Input AC 110 V, 60 Hz / Output DC 12 V|
|Maximum Output Power:||1 Watt EIRP|
|Downlink Power:||10 dBm|
|RF Connectors:||N-Female (both ends)|
|Dimensions:||9.25" x 6.375" x 1.375"|
|Weight:||4 lb. 4 oz.|
|SureCall Fusion5x Bands and Frequencies.|
|FREQUENCY||BAND 17||700 MHz|
|BAND 13||700 MHz|
|BAND 5||850 MHz|
|BAND 4||1700/2100 MHz|
|BAND 25/2||1900 MHz|
Alternate Part #'s:
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
