Description
Product Description
weBoost Office 200 (75 Ohm) | PN 471047.
Small to medium business owners who need more range and power to improve cellular signal in their office environment should look to this weBoost Office 200 (75 Ohm) signal booster kit. Recommended for boosting coverage area of approximately 15,000 square feet, but rated coverage area (in ideal conditions) is 35,000 square feet. This high-performance cellular amplifying solution dramatically improves cell signal in business locations. It delivers double the range and power than the weBoost Office 100 (75 Ohm). This Office 200 is 5G compatible and improves cellular signal on Verizon, Sprint, AT&T, T-Mobile and other US carriers.
For businesses requiring better cell coverage indoors over up to 35K sq. ft.
The weBoost Office 200 (75 Ohm) is an ideal cellular boosting solution for spaces of 12,000 to 35,000 square feet depending on the strength of outside signal. It is perfect for small to medium businesses who need more power and coverage than provided by the weBoost Office 100. This cell network amplifying solution is a high-performance solution for improving cellular signal in office situations. It delivers almost twice the range and power of the weBoost Office 100 amplifying solution. The result will be better streaming, no more dropped calls or interrupted texts, faster internet speeds, and improved hot spot capabilities.
The weBoost Office 200 comes complete with an omni-directional outside antenna and an inside low-profile dome antenna, ideally suited for any business environment. It also has a touch-screen LCD color display for better usability and control, plus frequency bands can be manually controlled if preferred. This 75 Ohm version is suitable for companies that have pre-installed 75 Ohm cabling with type F connectors.
Notable Details.
- Everything required for easy DIY installation is included in the box.
- The weBoost Office 200 is 5G compatible.
- Cellular signal is greatly improved on all US carrier networks including T-Mobile, Sprint, Verizon, ATT, and more.
- This signal amplifier comes with a 60-day money-back guarantee by SignalBooster.com and a 3-year manufacturer's warranty by Wilson Electronics.
This makes the weBoost Office 200 (75 Ohm) an ideal solution for business owners and managers where their customers and employees use different carriers.
How the weBoost 200 Office (75 Ohm) Works.
- Exterior antenna reaches out to all nearby cell towers.
- Cellular signals received by external antenna are then boosted by the cellular amplifier.
- These boosted signals are broadcast throughout your business premises for use by all employees and customers.

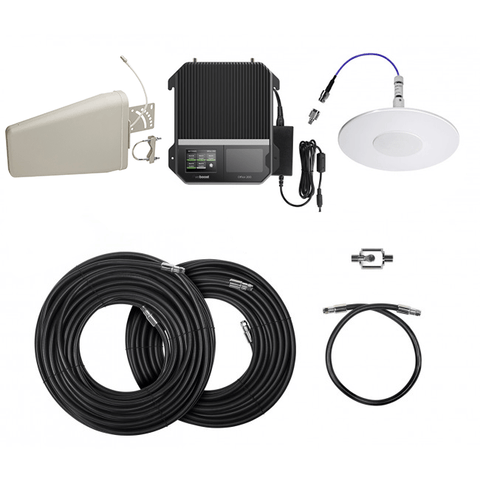

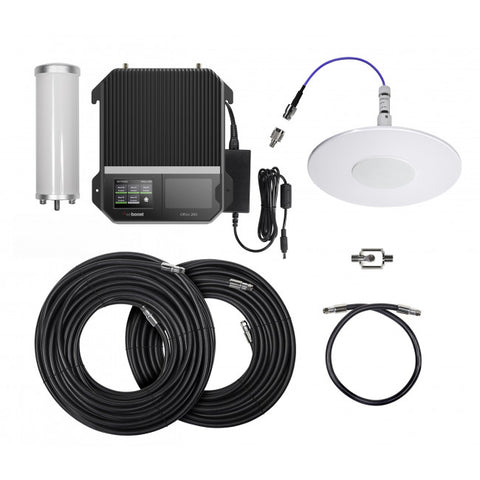

What is included in the kit?
- 75 Ohm Signal Amplifier (U471047).
- 75 Ohm Omni Plus antenna (314423) or Yagi antenna, depending on which one is chosen from the drop-down menu above.
- 75 Ohm Low Profile dome antenna (314407).
- 2 ft. RG11 low-loss cable (951127).
- 60 ft. RG11 low-loss cable (951160).
- 75 ft. RG11 low-loss cable (951175).
- 75 Ohm Lightning surge protector (859992).
- Power supply (850026).
- Cable mounting clips.
Exterior Antenna Options.
weBoost Office 200 comes with Omni exterior stock antenna which propagates signals omni-directionally, meaning in all directions. Thus, it is ideal for capturing signals from all directions and from all carrier's cell towers. It is easier to install because no aiming towards cell tower is required. It is ideal for areas that have medium to good cell signal strength outside the house or building.
Optional Yagi exterior antenna is a uni-directional antenna which is ideal for areas that have weak to medium cell signal strength outside the building or home. The reason for this is that these can reach out farther than omni antennas to catch signals from cell towers that are farther away. They would require aiming their pointed end towards the relevant carrier's cell tower.
Technical Specifications.
| Frequency | 700 MHz - Band 12/ 13/ 17, 850 MHz - Band 5, 1700/ 2100 MHz - Band 4, 1900 MHz - Band 25/ 2. |
|---|---|
| Maximum Gain | 72 Decibels (dB) |
| Impedance | 75 Ohm |
| Connector | F-Female |
| Voltage / Power | 110-240V AC, 50-60 Hz, 20W |
| Dimensions | 14.25 x 10.75 x 2.25 inches (amplifier) |
| Amplifier Weight | 7.70 lbs. (booster only). |
| 471047 (USA) UPC | 810005963121 |
| Downloadable Content (PDF) | Office 200 Spec. Sheet | Office 200 Install Guide |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
