Wi-Fi Plug and Play Wireless Ethernet Bridge kit in a box is a pre-paired PTP (Point-to-Point) link consisting of two WiFi Extenders like the product image shown. This outdoor long range point to point wireless ethernet bridge is a DIY point to point wireless connectivity between two sites. Both wi-fi amplifying antennas are identical in appearance and designed to extend WiFi network on 5 GHz frequency between two locations up to 10 miles apart!
This wifi signal booster, amplifier, repeater and extender kit based on ePMP technology contains everything needed to set-up installation. Review wifi bridge radio user guide. Need help with installation? Professional installation available by our certified installers, if required - especially for installing this wifi PTP system outdoors.
With its tremendous wi-fi coverage expansion range, it is specifically designed to be used outdoor but can technically be used to boost wi-fi signals indoors when pointed to each other with walls in between multiple rooms. Indoors, wifi reception would penetrate through wooden walls and drywall, but would be diffficult to pass through concrete walls.
This Wi-Fi Point to Point Bridge Link Connection Extender Kit solution can be installed by your team or our professional installers nationwide across USA to:
- Extend a local wireless network or wifi hotspot to a remotely located building.
- Extend your Wi-Fi 5 GHz connection link or hot-spot to a new desired location.
- Provide a time-saving and cost-effective solution to backhauling CCTV networks.
- Support any application requiring wireless network extension to boost, extend, and strengthen connectivity.
Wifi Signal Enhancer Kit Contains Following:

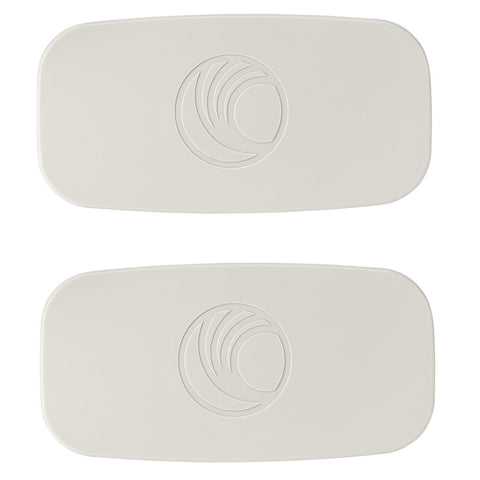

- Two Complete Pre-Configured Radios for Wifi 5 GHz Range Expansion & Extention (Quantity Two).
- Wifi signal amplifier POE Power Supplies for Both Wi-Fi Antennas.
- Pole/ Mast Mounting Brackets to Mount Both WiFi Antennae.
Wifi Booster Kit Highlights:
- High Power Industrial Grade Wi-fi Signal Booster Wireless Ethernet Bridge Kit.
- Up to Ten Miles of Range Between Two Pre-Configured Radio Units on 5 GHz Frequency.
- Up to 200 Mbps Throughput Speed Capacity/ Capability by this industrial grade wi-fi signal amplifier.
- Flexible Channel Width: 5, 10, 20, 40 MHz channels.
- Top notch wireless data security: AES128 data encryption and RADIUS-based authentication.
- Outdoor Wireless Ethernet Bridge has full 1 Watt Output Power.
Line of Sight Range of Outdoor Wi Fi Point to Point Bridge Link Connection Extender Kit:
Expected performance shown above based on Line of Sight (LOS) between the two units. Trees, buildings, and other obstructions will result in lower range and performance. Due to laws of physics, thoroughput (amount and speed of wireless data transfer) decreases as the distance increases between the two point to point wifi modules/antennas (one that projects or transmits and one that receives wifi signals).
These PTPoint wifi 5G frequency module boxes are the next generation Integrated Radios offering a high-gain, integrated 16 dBi patch antennas. Installation and alignment are very easy with adjustable mounting bracket. Each Point2P wifi antenna is small, sleek, and equipped with Gigabit Ethernet port to deliver maximum throughput speeds.
|Wireless Standard||ePTP proprietary protocol. Supports longer ranges, lower latency, and greater performance. Optional Standard Wi-Fi booster mode of operation available.|
|Wired Interface||Gigabit / Fast Ethernet|
|Functions||Traffic prioritization using ePMP QoS (Quality of Service), WEP security.|
|Power||24-56V PoE at device|
|Radio Transmit Power||Up to 30 dBm (1 W)|
|Environmental||Outdoor IP55 -4 to 131 deg F (-20 to +55 deg C)|
|Antenna||16 dBi integrated antenna|
|Mounting||Flexible pole mount. Supports diameters from 1-3 inches (2.5 – 7.5 cm)|
|Security||AES128 data encryption and RADIUS-based authentication|
|Frequency Range||4910 – 5970 MHz|
|Channel Spacing||Configurable on 5 MHz increments|
|Frequency Range||5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)|
|Channel Width||5 | 10 | 20 | 40 MHz|
|Physical Layer||2x2 MIMO/OFDM|
|Ethernet Interface||10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8). C058900B072A | 646444255103|
|Protocols Used||IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping|
|Network Management||HTTPs, SNMPv2c, SSH|
|VLAN||802.1Q with 802.1p priority|
|Nominal Receive Sensitivity (w/FEC) @20MHz Channel||MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)|
|Nominal Receive Sensitivity (w/FEC) @40MHz Channel||MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)|
|Quality of Service||Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority|
|Transmit Power Range||-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)|
|Surge Suppression||2 Joule Integrated|
|Weight||0.50 kg (1.1 lb.) (includes mounting bracket)|
|Wind Survival||145 km/hour (90 mi/hour) with antenna|
|Dimensions (h x w x d)||12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached|
|Pole Diameter Range||1 – 1.6 in (2.5 – 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp|
|Power Consumption||10 W Maximum, 5 W Typical|
|Input Voltage||10 to 30 V|
WiFi Point to Point Bridge Installation Guide & Set-up:
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
Question re: the size of the radio beam making the connection. I can create a line of sight corridor in a stand of the trees. The space would allow the two antennae to "see" each other without obstruction and without branches that would wave into the space. The distance is 250 feet. Is this sufficient?
Yes, that should suffice, based on info you have provided and we perceive to be the case.
Do these get affected by weather or humidity? If so, how severe is the signal loss? I would only have them at 200-250 feet away from each other.
Yes, the wireless connection will be affected by rain, snow, etc. up to 40% depending on the density or amount of saturation between the two points. Fortunately, the weather will not affect much for your intended purpose because the distance you need wireless connection over is comparatively very small.
I’m interested in extending my WiFi to our shop around 300 feet away. I looked at the WiFi PTP bridge link connection extender signal booster. Is this all I would need to order? Meaning is everything included in this package to get this done?
Yes, that is right. Everything needed is included.
Can this system be modified/upgraded/augmented to support point to multi-point wireless internet? What does that do to internet speeds?
Yes, you can configure this kit to use as PMP. However, you will need to configure the driver mode as "TDD" on both sides. Instructions provided at link here in Q & A response: (may not show in email response brief you receive)
Instructions show the basic configuration required to form a link between the AP and multiple SMs.
These radios are capable of providing the throughput of 200 Mbps which totally depends on the channel bandwidth, distance and number of SMs connected to the AP. While ePMP Radios can deliver maximum up to 200 Mbps, please note that Internet transmission will be distributed among all the clients connected to the AP causing speed degradation based on link condition, distance etc. and therefore Internet speed cannot be predicted with any accuracy. In most cases, the reduction is negligible if eliminating/discounting all external topographical factors.
Is any wireless license or wireless registration required to operate this wifi projecting system from one building to another?
No license needed and no registration required to use this unlicensed wifi point to point (P2P) projection system.
What cables do I have to supply to complete the installation?
For the building that has wifi network, you only need an ethernet cable to connect to the router (however long needed to reach your wifi source modem or router).
For the building receiving the wifi network, a cable is needed to connect to the POE switch (included) or to any other power source to power it up using any other way you can, to provide power to antenna.
A POE switch is a network switch that has Power over Ethernet injection built-in. Simply connect this network device to the switch included which will detect it is POE-compatible and enable power automatically.
POE Power Supplies for Both Wi-Fi Antennas are included with this purchase.
Is there a 2.4 Ghz version available?
Sorry, we do not have this in 2.4 Ghz frequency version. It only supports frequency range between 4910 - 5970 MHz. We recommend using 2.4 GHz Dish Antenna which supports 2.4 GHz frequency but since it is not a wifi bridge kit, you will need to purchase 2 units and configure one as Access Point and the other as a Subscriber Module. Please feel free to reach out to us for any configuration assistance.
Looks like the radio module only comes in one color; white. Can it be painted and is there a certain product it should be painted with?
Yes, they can be painted but: A) The paint must not contain any metal or metallic flakes. B) It will void the manufacturer warranty unless that paint can be removed completely if it ever needs to be sent for repair under its warranty within its warranty period. Learn more: https://www.signalbooster.com/pages/can-we-paint-or-camouflage-internal-or-external-signal-booster-antennas
I have purchased this product. I'm extending my house wifi to another building about 100 yards away. The house antenna will be connected to the router. What is needed in the remote building? Just a regular Access Point to provide wifi in the remote building?
That is correct.
Do these P2P bridges support 802.1Q, for vlans?
Yes, it will support 802.1Q.
Data Sheet / User Guide
Make An Offer
