Wilson Pro 70 Plus 463127, 463227, or 463327 (50 Ohm)
Wilson Pro 70 Plus 463127, 463227, or 463327 (50 Ohm)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 463327
Suggested accessory - Mounting Pole: Over 50 percent off on Antenna Mounting Pole to help mount exterior antenna (automatically discounted in shopping cart after adding this kit).
- Sold as a complete cell phone signal booster kit with all required parts.
- Boost in-building coverage up to 25k sq. ft. using this single unit.
- Digital display to view automatic gain control.
- 5 Band amplifier boosts signals of all cell service providers in USA.
- Up to +70 dB Gain antenna booster.
- Expand cellular coverage to more spaces indoors by purchasing additional 1, 2, or 3 Dome and/or Panel inside antenna kits (50 Ohm) that include required cables and splitter to connect to this 50 Ohm booster kit.
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
Wilson Pro 70 Plus (50 Ohm) signal booster, amplifier, repeater is for up to 25000 sq. ft. building. The part #'s Wilson 463127/ wa463127, 463227/ wa463227, 463327/ wa463327 from Wilson Electronics are one of the most affordable commercial signal boosters in the Plus line. This industrial-type heavy-duty booster WilsonPro 70 Plus (50 Ohm) amplifies signals for all 2G voice, 3G data and voice, and 4G LTE voice and data networks and bands in U.S.A. and Canada. Wilson Pro70 Plus is designed, engineered, and assembled in USA by Wilson Electronics/ weBoost. This item is on 2021 Cyber Monday Sale! Use coupon code FLASH15 for 15% OFF in addition to the sale price.
5G Ready - Per manufacturer, this WilsonPro cell phone booster will work for the next decade and beyond.
With up to 70 dB of signal gain for every 25,000 square feet the weBoost Pro70 Plus booster covers, you will no longer have to deal with dropped calls, dead zones, and poor voice and data quality. All you need is a bar worth of signal outside, and the booster with its high downlink power can handle the rest. Please note that a weaker incoming signal from outside will result in a smaller area of coverage.
The 50 Ohm in the Plus line is one of the most powerful boosters currently approved by the Federal Communication Commission (FCC). The professional grade kit comes complete with N-type connector and Wilson 400 coax cable, and the commercial kit includes an amplifier, wide band directional and dual band antennas, a surge protector, low loss cable and power supply. Expansion kits are also available for upgrades and larger scale installations.
With a self-optimizing microprocessor and built-in graphical signal meter, the booster can automatically discern the direction and strength of the cell tower and its signal. This makes set-up a breeze once it has been installed and registered with a network provider. It also features cell site protections that prevents interference with cell towers and other devices, making it safe for use around your other technologies.
More competitive advantages for the Wilson Pro 70 Plus line includes a set threshold which allows the booster to receive up to +10dB of stronger signal before shutting down automatically. For persons living in areas with a lot of signal traffic, such as cities, this is a great benefit. It also automatically turns on once the signal drops without needing to be power cycled by the installer. Its sophisticated software adjusts its own settings based on its environment, and it has a higher uplink and downlink power than its competitors, meaning stronger signals, better coverage, and greater capacity for increased range.
Pick up a Wilson Pro 70 Plus (50 Ohm) Kit and start getting better coverage today.

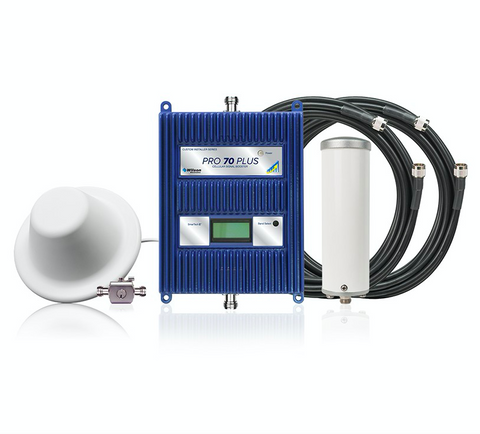

Wilson Pro 70 Plus Kit Includes:
- 463027, Signal Amplifier Central Base (Model Number: U463027).
- 314411, Wide Band Directional Antenna.
- 311135, Dual Band Panel Antenna.
- 859902, Lightning Surge Protector.
- 952302, 2 feet Low-Loss Wilson 400 Cable.
- 952360, 60 feet Low-Loss Wilson 400 Cable.
- 952375, 75 feet Low-Loss Wilson 400 Cable.
- 859900, 120 volts AC Power Supply.
Optional cable purchase (not required):
Kit includes Type 400 cables: 2 ft. cable for connecting included lightning surge protector, 75 ft. and 60 ft. cables for connecting interior and exterior antennas (interchangeable). For peak performance, always use shortest cables possible for least signal loss. Therefore, if different size cable needed, buy different size Black LMR400 cable(s) or White LMR400 cable(s) separately.
Other Optional Parts and Accessories (not included):
- Optional Omni Exterior Antenna: 3G & 4G Omni Wideband External Antenna (50 Ohm).
- Omni's are less powerful than Yagi's (included) but they draw signals from all directions and all carriers. Omni's don't have to be pointed to cell towers.
- Add'l Interior Panel Antenna(s): 3G & 4G In-Building Panel Antenna (50 Ohm).
- Add'l Interior Dome Antenna(s): 3G & 4G In-Building Dome Antenna (50 Ohm).
An additional cable will be required for each extra inside antenna (Panel or Dome) purchased for installation with this kit. Two way splitter(s), three way splitter(s), or four way splitter(s) would be required depending on the number of indoor antennas purchased to expand coverage further. Please contact us if you need assistance with your purchase. Thank you.
Wilson 463127 Pro 70 Plus reseller cell phone booster kit (N-type 50 ohm) is a commercial grade kit that is currently the most powerful 4G signal booster in its class allowed by the US Federal Communication Commission (FCC). Featuring N-type connectors and standard 50 Ohm cables, the package is quick and easy to install. This system will boost cell signals in large homes, offices and businesses up to 25,000 sq. ft.
Now rebranded under the “weBoost” banner, this Wilson Pro 70 Plus system is the best performing, in-building cell signal booster on the market. The Wilson 463127 amplifier features advanced, self-optimizing microprocessor and the highest FCC certified downlink power available. An in-built uplink and downlink power meter helps to make on-site installation fast and simple.
The Wilson Pro 70 kit will significantly boost indoor 2G, 3G, 4G LTE voice, text and data signals for all American carriers. In some buildings the increased gain may be as high as +70db. As well is extending the battery life of your client’s cell phones, better coverage also speeds data transfers and reduces the number of dropped calls. End-users also benefit from automatic control of overpowering and shut-down. This makes the system easy to manage – without having to re-power the Wilson 463127 amplifier.
Our Wilson Pro 70 Plus Reseller Cell Phone Booster Kits are only available to registered Wilson resellers and certified installers. This high performance 25,000 square feet kit comes with everything that you need to install the system in a luxury home, large office, retail outlet or business.
Wilson Pro 70 kits are not available online – call to place an order using our fast shipping service.
Features of WilsonPro 70 Plus Part # Wilson 463127:
- Highest FCC approved downlink power in the US.
- Comes with all items required for installation.
- Self-optimizing microprocessor for easy set-up.
- Built in uplink/downlink signal strength meter.
- Easy end-user system operation.
- Compatible with all US wireless networks.
- Certified by FCC.
- 60 Day money back guarantee.
- Three year warrant.
User benefits of Wilson Pro 70 Plus 463127:
- Boosts weak cell phone signals in problem areas.
- Significantly improves in-building cell use.
- Quicker cell phone data transfers.
- Significant reduction in dropped calls.
- Prolongs cell phone battery life.
Complete list of Wilson 463127 Pro 70 Plus kit contents:
- 463127 Wilson 5 Band Amplifier (Model Number: U463027).
- 314411 Wide Band Directional Antenna.
- 311135 Dual Band Panel Antenna.
- 859902 Lightning Surge Protector.
- 952302 2 Feet Low-Loss Wilson 400 Cable (50Ω).
- 952360 60 Feet Low-Loss Wilson 400 Cable (50Ω).
- 952375 75 Feet Low-Loss Wilson 400 Cable (50Ω).
- 859900 120V AC Power Supply.
Differences between the 3 Wilson Pro 70 Plus commercial signal booster kit options:
Please note that the only difference between above Wilson 463127 (UPC: 811815025993) parts list and the remaining two kits is that Wilson 463227 (UPC: 811815027027) contains Yagi exterior antenna and Dome interior antenna whereas Wilson 463327 (UPC: 811815027034) contains Omni exterior antenna and Dome interior antenna. All remaining parts in the package are the same.
|Model Number||463127 / 463227 / 463327|
|Frequency||Band 12/17||700 MHz|
|Band 13||700 MHz|
|Band 5||850 MHz|
|Band 4||1700/2100 MHz|
|Band 2||1900 MHz|
|Max Gain||70 dB|
|Power Req||AC/DC 12 V / 3 A|
|Dimensions||8.875 x 6.0 x 1.5 in /
22.5 x 15.2 x 3.8 cm
|Weight||2.81 lbs / 1.27 kg|
Note: Works with all Carriers in USA & Canada. If ordering to be shipped to Canada, Canadian version (463127F/ 463227F/ 463327F) of this kit will be shipped.
Wilson Pro 70 Plus 463127/ 463227/ 463327 (50 Ohm) Installation Service.
Installing this business class cell phone signal booster kit (WIL-463127, WIL-463227 and WIL-463327) requires comprehensive prior planning and cellular signal booster system design skills. Professional installation needs to be performed by certified installers. We have installed Wilson PRO70 Plus 463127/ 463227/ 463327 signal amplifiers in many architecturally different buildings and residential properties. Please contact us for WilsonPro 70PLUS 463327/ 463227/ 463127 installation service by experienced cell phone signal booster installers at a very affordable cost.
It is designed to work with all USA carrier networks including Verizon Wireless, AT&T, Sprint, T-Mobile.
Questions & Answers
QUESTIONS & ANSWERSAsk a Question
Im looking for a cell phone 4glte booster verizon carrier on the go, me and my wife are truck drivers ran a test speed, and the speed is there just need something to stop us from losing connection
For trucks, we would recommend this powerful vehicle cell signal booster that works great for all Carriers including Verizon Wireless, to boost reception in truck cabin. It has the highest uplink power of 21.2dBm average across all frequency bands.
How many users can be on this booster at one time?
Per manufacturers specifications, there's no specific limit of number of simultaneous users that can benefit from this commercial signal booster kit. Per the manufacturer, it is commercial grade so it will provide signal boost to all users within the coverage area up to 50,000 sq. ft. based upon the strength of outside signal.
What is the distance range of this unit?
This signal amplifier can boost cellular reception for areas up to 50,000 sq. ft. It can boost even more if you purchased and installed more interior antenna expansion kits.
Do you have car adapter for Wilson pro 70 plus?
Please note that this kit is extremely powerful and only allowed per FCC regulations to be used when stationary. If you wish to use it when parked in an RV etc., you can use an inverter with 12v power jack to power it up using the standard 12v auto power socket in your vehicle.
I was hoping to run my setup by you for some possible trouble shooting as I believe you are the experts in the field. I live rural, only satellite. Bought a weboost for the house, just the basic 1 room set-up. It did work and boosted me from no bars -spotty service up to 2 bars. I would run netgear nighthawk and would work if allowed to use roaming data. Upgraded antenna to Bolton Tech long ranger parabolic. On wilson signal meter I get band 12 (att) at -69bB, band 13 (verizon) at -75 dB and band 17 (T-mobile?) at -79/80 dB, which I thought was actually not too bad. I run it through booster and indoor antenna and netgear nighthawk can pick up LTE without roaming now but data is still very slow. My question is... is my service still likely just not great or would I benefit from upgrading amplifier to something like wilson 70 plus? I am just not sure what exactly rate limiting step is.
Yes, upgrading to Wilson Pro 70 Plus should help because it offers much higher Gain and much higher downlink output power than the weBoost basic home one room kit. For your assurance, we offer 60 days satisfaction guarantee so if in case it does not help improve data speed greatly, you can return for full refund.
Data Sheet / User Guide
Make An Offer
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
