SureCall Fusion5s CA 3 Watt 3G 4G LTE for up to 35,000 sq. ft. (Canada Only)

SureCall Fusion5s CA 3 Watt 3G 4G LTE for up to 35,000 sq. ft. (Canada Only)

  • $1,699.00 USD
Best Price Guarantee.
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. *Some restrictions apply.

SKU: SC-PolysH/O-72-CA-OD-Kit

Best Price Guarantee

SureCall Fusion 5s CA in-home/ in-office cell phone signal booster (Only for Canada + Requires professional installation by certified installer!)

  • Boosts voice, text, 3G, 4G reception of all Canadian cell providers.
  • Reduces dropped and missed calls. Improves 3G and 4G data speeds.
  • Covers 25k-35k sq. ft. of indoor spaces, depending on option chosen.
  • Supports multiple wireless devices such as cell phones and mobile 3G and 4G connected tablets simultaneously.
  • Expand indoor coverage more by purchasing add'l in-building antenna kits that include required cables and splitter to connect to this booster kit.


Pay Over Time with PayPal Credit
No Payments + No Interest if paid in full in 6 months. For US customers. Choose PayPal at checkout for details.
Pay later with

Call for FREE consultation:

1-855-846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Data Sheet / User Guide
  • Make An Offer

Description

Product Description

SureCall Fusion5s CA is a 3-watt industrial grade signal booster designed for only professional installation in Canadian Homes and Offices up to 35,000 square feet by certified installers. Request quote for professional installation. This 5 multi-band signal booster kit works with all Canadian mobile carrier networks including Telus, Rogers, Bell, SaskTel, etc.

It boosts cellular signals for clearer voice, instantaneous texting, and faster 4G LTE data speeds. It is a higher performing booster specifically designed for use within Canada. It offers 78 dB gain in lower bands which is ideal for rural areas or on fringes of cell phone provider coverage spaces. This signal amplifier kit is compatible with SureCall Sentry Remote Monitoring System.

Here're the six configurations of the kit SC-PolysH/O-72-CA with various inside and outside antennas that help determine approximate interior boosted area sizes (in addition to outside signal strength as a determining factor of inside boosted area size):

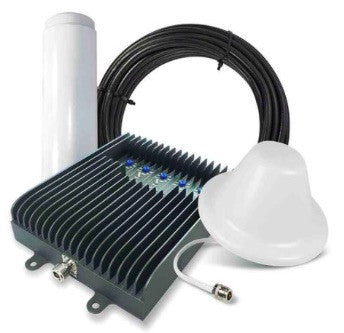

 1. SureCall Fusion5s CA Canada Omni Exterior Antenna with Dome Interior Antenna (part # SC-PolysH/O-72-CA-OD-Kit). Covers up to 25,000 square feet (may increase or decrease depending upon strength of signal outside).

Omni external antenna as included in this kit is suggested when signal outside the home or building is strong. Exterior omni-directional antennas are ideal for topographies with minimal obstacles. Therefore, they are best when installed higher than surrounding obstructions such as higher buildings. This type outside antenna is an omni-directional antenna which means it draws signal from all directions and from all carrier's cell towers. This also makes it easy to install as there is no need to point it to the nearest cell tower.

Dome internal antenna as included in this kit is suggested when coverage needed inside the home or building is in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting.

This cell phone booster for home kit includes: Fusion5s CA Booster, outside omni antenna, inside dome antenna, 30 feet and 75 feet SureCall coax cable.

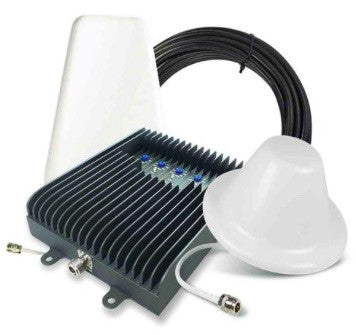

2. SureCall Fusion5s CA Canada Yagi Exterior Antenna with Dome Interior Antenna (part # SC-PolysH/O-72-CA-YD-Kit). Covers up to 25,000 square feet (may increase or decrease depending upon strength of signal outside).

Yagi external antenna as included in this kit is suggested when signal outside the home or building is weak. Uni-directional yagi exterior antennas are designed to reach towers that are up to 30 miles away. This type outside antenna is a uni-directional antenna that needs to be pointed in the direction of the nearest cell tower of the carrier whose signals need to be boosted inside. It then draws signals from much farther away than an omni-directional antenna would be able to attract.

Dome internal antenna as included in this kit is suggested when coverage needed inside the home or building is in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting.

This cell phone booster for home kit includes: Fusion5s CA Booster, outside Yagi Antenna with inside dome antenna, 30 feet and 75 feet CM coax cable.

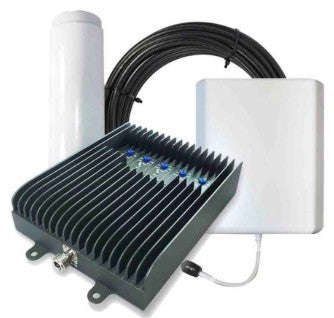

3. SureCall Fusion5s CA Canada Omni Exterior Antenna with Panel Interior Antenna (part # SC-PolysH/O-72-CA-OP-Kit). Covers up to 30,000 square feet (may increase or decrease depending upon strength of signal outside).

Yagi external antenna as included in this kit is suggested when signal outside the home or building is weak. This type outside antenna is a uni-directional antenna that needs to be pointed in the direction of the nearest cell tower of the carrier whose signals need to be boosted inside. It then draws signals from much farther away than an omni-directional antenna would be able to attract. Uni-directional yagi exterior antennas are designed to reach towers that are up to 30 miles away.

Panel internal antenna as included in this kit is suggested when coverage needed inside the home or building is across long rectangular spaces like a corridor and/or multi levels. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floor below as well. In-building unidirectional panel antennas allow for optimum reception to targeted areas.

This cell phone booster for home kit includes: Fusion5s CA Booster, outside omni antenna with inside panel antenna, 30’ and 75’ coax cable.

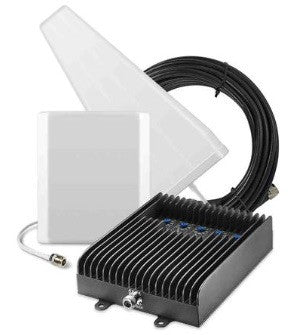

4. SureCall Fusion5s CA Canada Yagi Exterior Antenna with Panel Interior Antenna (part # SC-PolysH/O-72-CA-YP-Kit). Covers up to 30,000 square feet (may increase or decrease depending upon strength of signal outside).

Yagi external antenna as included in this kit is suggested when signal outside the home or building is weak. This type outside antenna is a uni-directional antenna that needs to be pointed in the direction of the nearest cell tower of the carrier whose signals need to be boosted inside. It then draws signals from much farther away than an omni-directional antenna would be able to attract. Uni-directional yagi exterior antennas are designed to reach towers that are up to 30 miles away.

Panel internal antenna as included in this kit is suggested when coverage needed inside the home or building is across long rectangular spaces like a corridor and/or multi levels. In-building unidirectional panel antennas allow for optimum reception to targeted areas. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floor below as well.

This cell phone booster for home kit includes: Fusion5s CA Booster, outside Yagi antenna with inside panel antenna, 30 feet x 75 feet CM coax cable.

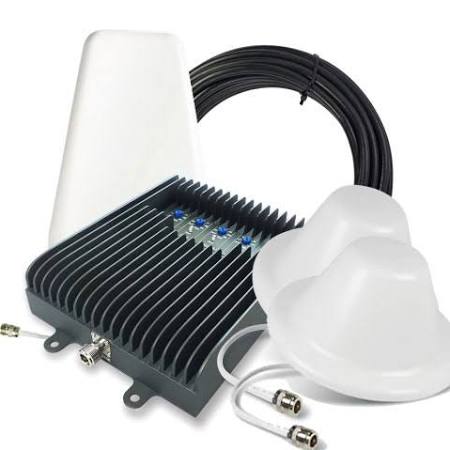

5. SureCall Fusion5s CA Canada Yagi Exterior Antenna with 2 Dome Interior Antennas (part # SC-PolysH/O-72-CA-YD2-Kit). Covers up to 35,000 square feet (may increase or decrease depending upon strength of signal outside). Kit includes 10 ft., 75 ft. and two 50 ft. lengths of SureCall 400 low loss coax cables, 2-way splitter, outdoor Yagi antenna, and two indoor dome antennas.

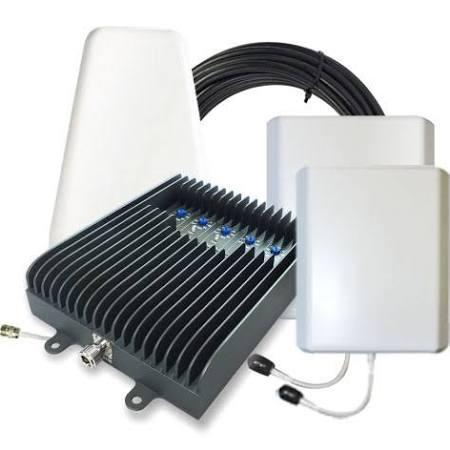

6. SureCall Fusion5s CA Canada Yagi Exterior Antenna with 2 Panel Interior Antennae (part # SC-PolysH/O-72-CA-YP2-Kit). Covers up to 35,000 square feet (may increase or decrease depending upon strength of signal outside). Kit includes 10 ft., 75 ft. and two 50 ft. lengths of SureCall 400 low loss coax cables, 2-way splitter, outdoor Yagi antenna, and two indoor panel antennas.

Summary:

  • Boosts voice, text and 4G LTE signals for all Canadian cell carriers.
  • Reduces dropped & missed calls and improves 4G LTE data speeds.
  • Increases signal strength & extends battery life for all cellular devices.
  • Supports multiple users simultaneously.
  • Covers a home or office, from up to 25,000 sq. ft. to up to 35,000 sq. ft. depending upon antenna configuration chosen and outside signal strength.

This 2G, 3G, 4G LTE cellular signal booster kit is compatible with following Canadian wireless service providers:

Canadian Service Providers
Bell Mobility
Chatr
Fido
Ice Wireless
Koodo Mobile
Mobilicity
Tbaytel
MTS
NorthernTel
Public Mobile
Rogers Wireless
SaskTel
Telus Mobility
Videotron
Virgin Mobile Canada
Wind Mobile



Fusion5s CA Specifications:

Frequency Uplink: 698-716/776-787, 824-849, 1850-1915, 1710-1755 Mhz (G Block Included); Downlink : 728-746, 746-757, 869-894, 1930-1995, 2110-2155 Mhz (G Block Included).
Input Impedance 50 ohm.
Maximum Gain 78.5 dB.
VSWR ≤2.0
Standards Supported CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards.
AC Power Transmitter Input AC 110V, 60Hz/ Output DC 12V.
Maximum RF Output Power 3 Watt Effective Isotropic Radiated Power (EIRP).
Noise Figure 6 dB.
Cable SC-400.
RF connectors N Female on both ends.
Power Consumption <25W
Dimensions 9-1/4" x 6-3/8" x 1-3/8".
Weight

4 lb. 4 oz.



SureCall Canada Fusion 5s CA Bands and Frequencies.
FREQUENCY BAND 17 700 MHz
  BAND 13 700 MHz
  BAND 5 850 MHz
  BAND 4 1700/2100 MHz
  BAND 25/2 1900 MHz



Alternate Part #'s:

  • SC-PolysH/O-72-CA
  • SCPolysH/O72CA
  • SCPolysHO72CA
  • PolysH/O-72-CA
  • PolysH/O72CA
  • PolysHO72CA
  • SC-PolysH/O-72-CA-OD-Kit
  • SC-PolysH/O-72-CA-YD-Kit
  • SC-PolysH/O-72-CA-OP-Kit
  • SC-PolysH/O-72-CA-YP-Kit
  • SC-PolysH/O-72-CA-YD2-KIT
  • SC-PolysH/O-72-CA-YP2-KIT
  • PolysH/O-72-CA-OD-Kit
  • PolysH/O-72-CA-YD-Kit
  • PolysH/O-72-CA-OP-Kit
  • PolysH/O-72-CA-YP-Kit
  • PolysH/O-72-CA-YD2-KIT
  • PolysH/O-72-CA-YP2-KIT
  • SC-PolysH/O-72-CA-OD
  • SC-PolysH/O-72-CA-YD
  • SC-PolysH/O-72-CA-OP
  • SC-PolysH/O-72-CA-YP
  • SC-PolysH/O-72-CA-YD2
  • SC-PolysH/O-72-CA-YP2
  • PolysH/O-72-CA-OD
  • PolysH/O-72-CA-YD
  • PolysH/O-72-CA-OP
  • PolysH/O-72-CA-YP
  • PolysH/O-72-CA-YD2
  • PolysH/O-72-CA-YP2
  • SCPolysH/O72CAODKit
  • SCPolysH/O72CAYDKit
  • SCPolysH/O72CAOPKit
  • SCPolysH/O72CAYPKit
  • SCPolysH/O72CAYD2KIT
  • SCPolysH/O72CAYP2KIT
  • PolysH/O72CAODKit
  • PolysH/O72CAYDKit
  • PolysH/O72CAOPKit
  • PolysH/O72CAYPKit
  • PolysH/O72CAYD2KIT
  • PolysH/O72CAYP2KIT
  • SCPolysH/O72CAOD
  • SCPolysH/O72CAYD
  • SCPolysH/O72CAOP
  • SCPolysH/O72CAYP
  • SCPolysH/O72CAYD2
  • SCPolysH/O72CAYP2
  • PolysH/O72CAOD
  • PolysH/O72CAYD
  • PolysH/O72CAOP
  • PolysH/O72CAYP
  • PolysH/O72CAYD2
  • PolysH/O72CAYP2
  • SCPolysHO72CAODKit
  • SCPolysHO72CAYDKit
  • SCPolysHO72CAOPKit
  • SCPolysHO72CAYPKit
  • SCPolysHO72CAYD2KIT
  • SCPolysHO72CAYP2KIT
  • PolysHO72CAODKit
  • PolysHO72CAYDKit
  • PolysHO72CAOPKit
  • PolysHO72CAYPKit
  • PolysHO72CAYD2KIT
  • PolysHO72CAYP2KIT
  • SCPolysHO72CAOD
  • SCPolysHO72CAYD
  • SCPolysHO72CAOP
  • SCPolysHO72CAYP
  • SCPolysHO72CAYD2
  • SCPolysHO72CAYP2
  • PolysHO72CAOD
  • PolysHO72CAYD
  • PolysHO72CAOP
  • PolysHO72CAYP
  • PolysHO72CAYD2
  • PolysHO72CAYP2

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • Can I use wire mesh to shield the indoor antenna from the outdoor antenna

    Yes, that would work to prevent oscillation if that is what you're trying to eliminate.

  • Does this work in a concrete building?

    Yes, this is perfect for concrete buildings. Please check to ensure there is some reception outside the building (ability to make and receive calls outside). This will guarantee that the exterior antenna will inject the required signal into the concrete structure that has weak or no cellular signal inside. Even a weak signal will suffice because the signal amplifier will multiply that signal many fold to amplify cell signals inside.

  • Does this kit come with a pole to mount to the roof?

    It does not, however, we include that free with all kits because you will find it very useful for mounting your on-building antenna if there is no pole on your roof to mount it on.

  • What is the cost installation service?

    The cost of installation varies widely based on current outside signal strength, the complexity of building/house construction, areas where coverage is required, etc. Therefore, unfortunately, we cannot quote an exact cost for signal booster installation service. Please provide few details for signal booster installation service, and we will get back to you within 48 hours with a confirmed quote.
