Description
Product Description
Nextivity Cel-Fi GO+ (Plus) GO-X & GO-M Home, Building, Car, Truck, RV, Marine cell phone signal booster kit options. Nextivity's CelFi GO Plus X and M (Indoor and Outdoor) Smart Cellular Amplifier kit improves mobile reception inside homes, offices, buildings and/or vehicles. No more dropped calls nor slow mobile Internet. Enjoy strong wireless connectivity on devices such as smartphones, tablet computers, and mobile hotspot Mi-Fi devices. SKU: 590NG32GWUS5VZUSBTF1. Bands: 2/4/5/12/13. Model: G32-2/4/5/15/13P.
It enhances cellular connection in-building and/or vehicles depending on antenna kitted options chosen. Cel-Fi Go X Plus M offers industry-leading gain of up to 100 dB (stationary mode) and up to 65 dB (mobile mode). The same unit, Nextivity Cel-Fi GO+, is switchable to boost signals of any major carrier network in United States of America. If ordering from Canada, Canadian version will be shipped. Instructions will be included with purchase.
Main amplifier unit is portable. It can be moved from home to vehicle, and vice versa. It can be used in both places by purchasing two sets of antennas - one for vehicle, and one for home/office. The switch from stationary (for homes/offices providing up to 100 dB Gain) and mobile mode (for vehicles providing up to 65 dB Gain) or vice versa, as well as carrier switch to Carrier network that needs boost - can be made within seconds using Cel-Fi WAVE Smartphone App that is free with purchase.
Note: This unit requires outside & inside antennas to complete the system. Antennas and required parts are not included with the signal amplifier main unit. Therefore, in-building and/or vehicle antennas that include required parts must be purchased as needed from drop-down menu provided, in order for complete Carrier-Grade, Smart Cellular Signal Enhancement System to work.
Other available kit listings with relevant antennas:
Cel-Fi GO Plus smart signal amplifier is included in several different bundle solutions with antennas for specific applications, including: Cel-Fi Go Vehicle, Cel-Fi Go RV/ Trucker, Cel-Fi Go Marine, Cel-Fi GO X Indoor, Cel-Fi Go Remote, and Cel-Fi Go Portable. Cel‐Fi GO-Plus Smart Amplifier is cost efficient and easy‐to‐deploy, and can be optimized and monitored by the Cel-Fi WAVE Platform.
In USA, covered networks include AT&T Wireless, Verizon Wireless, T-Mobile, Sprint, U.S. Cellular and GCI Alaska. In Canada, It will work for the Rogers Wireless, Bell Mobility, Telus Mobility, SaskTel, and Videotron networks.
Cel-Fi Go M Plus X is the only cellular service enhancement solution that meets both mobile and stationary needs respectively from the same device. The same unit works for vehicles such as car, truck, RV as well as home, office, building.
The world’s first All-in-One Cellular Coverage Solution for both indoor / outdoor in Stationary / Mobile applications.
By providing a single unit for both mobile or fixed applications, Cel-Fi GO-Plus provides integrators with greater flexibility for a wide variety of applications, including in-building, remote, outdoor, IoT, marine, RV, and transportation. Customers can now have all of their coverage needs met by one solution, making it easier and more efficient to provide signal.
Please note: The main smart signal booster unit includes only power supply for standard AC & DC outlets. It requires interior and exterior antennas along with cables to complete set-up to improve in-building or in-vehicle cellular reception. Antennas and associated accessories must be purchased separately in drop-down menu provided above, or choose links below in description that list complete kits with all required parts. Review CelFi Go Plus Data Sheet and CelFi Go Plus Quick Start Guide for more details.
Cel-Fi GO+ in stationary mode:
Cel-Fi GoPlus in stationary mode is designed to boost cellular in signal challenged spaces, delivering up to 15,000 square feet of coverage per unit. Solve coverage problems created by building materials, obstructions, and weak macro signals. Whether in an office, warehouse, basement, or even inside a bunker; Cel-Fi GO+ can deliver Voice and Data to your phone or IoT device.
The Cel-Fi GO+ (or Cel-Fi GO X) offers industry-leading gain of 100 dB in its stationary modewhich is 1000 times greater gain increase than other offerings to provide the highest carrier grade performance available.
Cel-Fi GO+ in mobile mode:
The Cel-Fi GO+ (or Cel-Fi GO X) Cel-Fi GoPlus in mobile mode allows you stay connected on the move, dynamically connecting from tower to tower. In mobile mode, Cel-Fi GO+ is designed to boost mobile coverage for multiple users in trucks, automotive, RVs, and marine installations. It is also ideal for use by first responders, who depend on reliable cellular communication to save lives and mitigate property damage. The mobile mode, the Cel-Fi GO+ (or Cel-Fi GO M) delivers up to 70 dB gain which is up to 100 times greater than other solutions on the market, for vehicles and boats on the move.
For Vehicles, RVs, Trucks & Marine Vessels:
The Cel-Fi GO+ All-in-One Smart Signal Booster is the best solution for addressing the universal challenge of poor cellular coverage on the road. Select the appropriate donor/ server antenna bundle for the application to deliver the best voice/ data wireless performance for vehicles and boats on the move.

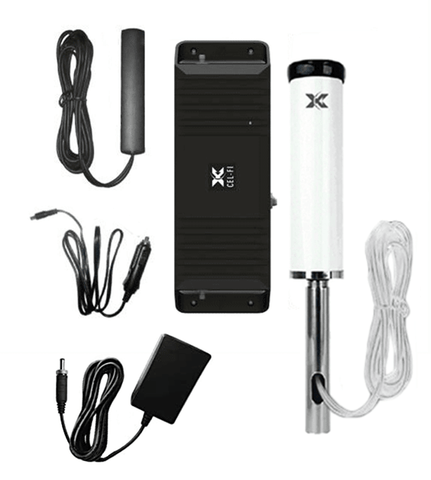

Cel-Fi GO+ Vehicle:
The Cel-Fi GO+ Vehicle solution includes the Cel-Fi GO+, Cel-Fi Mobile Donor Antenna, and the Cel-Fi Mobile Server Antenna. Easy carrier switching and mode switching is available through the Cel-Fi WAVE app. With an industry leading 65 dB gain max, the Cel-Fi GO+ Vehicle is an ideal solution for vehicles on the road.
Example Cel-Fi Mobile Donor Antenna (A41-V21-100) would include:
- SMA-Male connector.
- Omni-directional.
- 3m low loss high-performance cable.
- Screw Mount version available.
Example Cel-Fi Mobile Server Antenna (A41-V30-100) would include:
- 4m cable.
- Adhesive mount for ease of installation.
- SMA-Male connector.
- Omni-directional antenna pattern.
Cel-Fi GO+ RV/ Trucker:
Cel-Fi GO+ RV/Trucker Solution bundle includes the Cel-Fi GO+, Cel-Fi Trucker Antenna, and the Cel-Fi Mobile Server Antenna. Easy carrier switching and mode switching is available through the Cel-Fi WAVE app. With an industry leading 70 dB gain maximum in mobile mode and 100 dB gain maximum in stationary mode, Cel-Fi GO+ RV/Trucker is the ideal solution for cross country trucking or remote RV stays.
Example Cel-Fi Trucker Antenna (A21-V31-100) includes:
- Heavy-duty spring base.
- Mirror mount included for easy installation.
- SMA-Male connector.
- 4 dBi gain.
Example Cel-Fi Mobile Server Antenna (A41-V30-100):
- 4m cable.
- Adhesive mount for ease of installation.
- SMA-Male connector.
- Omni-directional antenna pattern.
Cel-Fi GO+ Marine:
The Cel-Fi GO+ Marine Solution includes the Cel-Fi GO+, Cel-Fi Marine Antenna and the Cel-Fi Mobile Server Antenna. Easy carrier switching and mode switching is available through the Cel-Fi WAVE app. With an industry leading maximum 65 dB gain in mobile mode and maximum 100 dB gain in stationary mode, the Cel-Fi GO+ Marine is an ideal solution for nearshore or brown water recreational, ferrying or shipping vessels.
Cel-Fi Marine Antenna (A11-V37-100) features:
- Weather resistant.
- Built-in ground plane.
- Threaded ferrule/ post for side or bottom cable exit.
- Screws onto standard 1 inch marine threaded mount.
Sample Cel-Fi Mobile Server Antenna (A41-V30-100) features:
- 4m cable.
- Adhesive mount for ease of installation.
- SMA-Male connector.
- Omni-directional antenna pattern.
Choose from available in-vehicle kits with relevant antennas using links provided above.
Cel-Fi GO Plus X Indoor/ Outdoor Solution is perfect for:
- Government buildings.
- Agricultural settings.
- Parking garages.
- IoT and M2M (machine to machine).
- Small manufacturing operations.
- Business in single / multi-level commercial properties.
- Remote or rural locations.
- Large homes.
Cel-Fi GO Plus Smart Signal Booster can be installed indoors or outdoors for 100 dB signal gain in areas up to 15,000 square feet per system. The Cel-Fi GO+ Smart Signal Booster paired with either Cel-Fi Omni Dome Antenna(s) for ceiling mount or Cel-Fi Wideband Panel Antenna(s) for wall mount along with the Cel-Fi Wideband Directional Antenna is the perfect in-building, remote and IoT solution. Additional server antennas are available for venues with more floors or dense interior walls. For areas that suffer from extremely poor outdoor signal, the new high gain Cel-Fi LPDA Antenna is available.
Parts in building signal booster kits examples.
These standard kits include 30 ft. cables for connecting exterior antenna to signal amplifier as well as 30 ft. cable for connecting signal amplifier to interior antenna. If you need longer or shorter interior and/or exterior cable for installation in your specific property, buy any length cable up to 100 ft. with same connectors to fit antenna & Cel-Fi GO cell amplifier. Please note: Longer the cable, the more signal loss it will incur, which, in most cases, this up to 100dB Gain booster can easily compensate as long as outside signal strength power is strong enough. Signal loss can be 1dB to 6dB depending on the length of cable and frequency waves being transmitted. Exact amount of signal loss shown at preceding cable listing page listing link. Longer interior cable will not affect performance as much as longer exterior cable would, because exterior cable length is more critical because that is what brings source signal into the signal amplifier to boost with up to 100 dB Gain.
1st Option: Indoor Ceiling-Mounted Dome Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & interior Dome antennas, two (2) lengths of 30-foot ultra-low-loss cable, two (2) SMA to N-type adapters, lightning surge protector, grounding kit, and exterior antenna mounting pole.
Part #'s, description, model #'s in this kit (CELFI-GO-PLUS-1D-BUNDLE):
- 590NG32GWUS5VZUSBTF1: Nextivity Cel-Fi GO+ (Plus) Band 2/4/5/12/13 (Signal Amplifier). Default carrier Verizon can be changed to any Carrier in seconds, using the Cel-Fi WAVE app.
- 591NA11280C62V44: Nextivity Cel-Fi GO-X/ PRO-EXA Indoor Dome (omni-directional) Antenna. Threaded Bolt. White. 1 ft. Cable - 1 LTE (N F). Model A11-V43-101.
- 591NA32255709V34: Nextivity Cel-Fi GO-X/ PRO/ QUATRA Indoor/ Outdoor Wideband Directional Yagi Antenna. Bracket Mount. White. 2m Cable - LTE (N F). Model A32-V32-101.
- GW400-360-SM-NM (Qty. 2): 30 ft. LMR-400 Coaxial Cable Assembly - SMA Male to N Male.
2nd Option: Indoor Ceiling or Wall-Mounted Panel Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & interior Panel antennas, two (2) lengths of 30 ft ultra-low-loss cable, two (2) SMA to N-type adapters, lightning surge protector, grounding kit, and exterior antenna mounting pole.
Part #'s, description, model #'s in this kit (CELFI-GO-PLUS-1P-BUNDLE):
- 590NG32GWUS5VZUSBTF1: Nextivity Cel-Fi GO+ (Plus) Band 2/4/5/12/13 (Signal Amplifier). Default carrier Verizon can be changed to any Carrier in seconds, using the Cel-Fi WAVE app.
- 591NA52280A06V42: Nextivity Cel-Fi GO-X/PRO Indoor Wideband Directional Panel Antenna - Bracket Mount - White. 2m Cable - LTE (N F). Model A52-V32-101.
- 591NA32255709V34: Nextivity Cel-Fi GO-X/ PRO/ QUATRA Indoor/ Outdoor Wideband Directional Yagi Antenna. Bracket Mount. White. 2m Cable - LTE (N F). Model A32-V32-101.
- GW400-360-SM-NM (Qty. 2): 30 ft. LMR-400 Coaxial Cable Assembly - SMA Male to N Male.
3rd Option: Two (2) Indoor Ceiling-Mounted Dome Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & two interior Dome antennas, three (3) lengths of 30-foot ultra-low-loss cable, two (2) SMA to N-type adapters, a 2-way signal splitter, 2 ft. ultra low loss jumper cable, lightning surge protector, grounding kit, and exterior antenna mounting pole.
Part #'s, description, model #'s in this kit (CELFI-GO-PLUS-2D-BUNDLE):
- 590NG32GWUS5VZUSBTF1: Nextivity Cel-Fi GO+ (Plus) Band 2/4/5/12/13 (Signal Amplifier). Default carrier Verizon can be changed to any Carrier in seconds, using the Cel-Fi WAVE app.
- 591NA11280C62V44 (Qty. 2): Nextivity Cel-Fi GO-X/ PRO-EXA Indoor Dome (omni-directional) Antenna. Threaded Bolt. White. 1 ft. Cable - 1 LTE (N F). Model A11-V43-101.
- 591NA32255709V34: Nextivity Cel-Fi GO-X/ PRO/ QUATRA Indoor/ Outdoor Wideband Directional Yagi Antenna. Bracket Mount. White. 2m Cable - LTE (N F). Model A32-V32-101.
- GW400-360-SM-NM: 30 ft. LMR-400 Coaxial Cable Assembly - SMA Male to N Male.
- GW400-360-NM-NM (Qty. 2): 30 ft. LMR-400 Coaxial Cable Assembly - N Male to N Male.
- GW195-12-SM-NM: 1 ft. LMR-195 Coaxial Cable Assembly - SMA Male to N Male.
- SPLT727NF-2: 2-Way Reactive Power Splitter - N Female - 0.7-2.7 GHz 300 Watts - 50 Ohm - ≤-150dBc @+43dBm.
4th Option: Two (2) Indoor Ceiling or Wall-Mounted Panel Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & two interior Panel antennas, three (3) lengths of 30 ft ultra-low-loss cable, two (2) SMA to N-type adapters, a 2-way signal splitter, 2 feet ultra low loss jumper cable, lightning surge protector, grounding kit and exterior antenna mounting pole.
Part #'s, description, model #'s in this kit (CELFI-GO-PLUS-2P-BUNDLE):
- 590NG32GWUS5VZUSBTF1: Nextivity Cel-Fi GO+ (Plus) Band 2/4/5/12/13 (Signal Amplifier). Default carrier Verizon can be changed to any Carrier in seconds, using the Cel-Fi WAVE app.
- 591NA52280A06V42 (Qty. 2): Nextivity Cel-Fi GO-X/PRO Indoor Wideband Directional Panel Antenna. Bracket Mount. White. 2m Cable - LTE (N F). Model A52-V32-101.
- 591NA32255709V34: Nextivity Cel-Fi GO-X/ PRO/ QUATRA Indoor/ Outdoor Wideband Directional Yagi Antenna. Bracket Mount. White. 2m Cable - LTE (N F). Model A32-V32-101.
- GW400-360-SM-NM: 30 ft. LMR-400 Coaxial Cable Assembly - SMA Male to N Male.
- GW400-360-NM-NM (Qty. 2): 30 ft. LMR-400 Coaxial Cable Assembly - N Male to N Male.
- GW195-12-SM-NM: 1 ft. LMR-195 Coaxial Cable Assembly - SMA Male to N Male.
- SPLT727NF-2: 2-Way Reactive Power Splitter - N Female - 0.7-2.7 GHz 300 Watts - 50 Ohm - ≤-150dBc @+43dBm.
5th Option: Three (3) Indoor Ceiling-Mounted Dome Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & three interior Dome antennas, four (4) lengths of 30-foot ultra-low-loss cable, three (3) SMA to N-type adapters, a 3-way signal splitter, 2 ft. ultra low loss jumper cable, lightning surge protector, grounding kit and exterior antenna mounting pole. Same part #'s as option 3, except this has extra interior dome antenna, extra cable, and 3-way splitter.
6th Option: Three (3) Indoor Ceiling or Wall-Mounted Panel Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & three interior Panel antennas, four (4) lengths of 30 ft ultra-low-loss cable, three (3) SMA to N-type adapters, a 3-way signal splitter, 2 ft. ultra low loss jumper cable, lightning surge protector, grounding kit and exterior antenna mounting pole. Same part #'s as option 4, except this has extra interior panel antenna, extra cable, and 3-way splitter.
7th Option: Four (4) Indoor Ceiling-Mounted Dome Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & interior four interior Dome antennas, five (5) lengths of 30-foot ultra-low-loss cable, four (4) SMA to N-type adapters, a 4-way signal splitter, 2 ft. ultra low loss jumper cable, lightning surge protector, grounding kit and exterior antenna mounting pole. Same part #'s as option 5, except this has extra interior dome antenna, extra cable, and 4-way splitter.
8th Option: Four (4) Indoor Ceiling or Wall-Mounted Panel Antenna Kit.
Everything you need for safe, easy, and complete installation is included in the Cel-Fi GO-X kit including exterior Yagi & four interior Panel antennas, five (5) lengths of 30 ft ultra-low-loss cable, four (4) SMA to N-type adapters, a 4-way signal splitter, 2 ft. ultra low loss jumper cable, lightning surge protector, grounding kit and exterior antenna mounting pole. Same part #'s as option 6, except this has extra interior panel antenna, extra cable, and 4-way splitter.
Choose from available in-building kits with relevant antennas using links or drop-down menu provided above.
Cel-Fi WAVE Mobile App.
Cel-Fi WAVE smartphone app runs on the GO-Plus and will help you get the best performance from it. That app is available for Android and iOS. It provides a User Interface to Cel-Fi systems. Application's dashboard shows the system's "Boost" value, allowing you to monitor the signal gain the GO provides. With this app, CelFi Go Plus can be easily switched from stationary mode for coverage in homes and offices to mobile mode for coverage in moving vehicles with built-in software switching option.
Operator Switching:
Selecting your network operator is easy. Just download the Cel-Fi WAVE app and select your Mobile Network Operator/Carrier from the Settings page. Approved for use on AT&T, T-Mobile, Sprint, Verizon, U.S. Cellular, GCI Alaska, Rogers, TELUS, Bell Mobility, SaskTel, Freedom Mobile, Vidéotron, and Eastlink.
Mode Switching:
Switch between Mobile and Stationary is also done through the Cel-Fi WAVE app. Simply connect to your booster and select the Mode from the Settings page.
Product Overview:
The Cel-Fi GO-Plus Smart Booster line is the first carrier-class cellular coverage solution to feature an industry leading system gain. Artificial intelligence and Nextivity's award-winning Intelliboost signal processing deliver the industry's best voice and data wireless performance. It is guaranteed to be unconditionally network safe and does not interfere with other wireless devices. Cel-Fi GO+ is NEMA 4 rated and will withstand harsh conditions including dust and water exposure. Cel-Fi GO+ warranty period is two years from the date of purchase.
Benefits.
- Environmental rating: Outdoor NEMA 4 Rating.
- Multi-carrier support with carrier switching.
- Multi-user support.
- Carrier approved for 3G /4G/LTE for voice and data.
- Unconditionally network safe.
- SMA-Female antenna connectors.
- Cel-Fi WAVE management platform.
- Superior performance: 65 dB (mobile mode) and 100 dB (stationary mode) max gain with IntelliBoost.
- All-in-One Cellular Coverage Solution: with mode switching between mobile and stationary modes.
Specifications & Data:
| Wireless Features: | 3G/ 4G/ LTE support (WCDMA / HSPA+ / LTE). Supports two (2) bands simultaneously from a single operator. FDD. Up to 65 dB (mobile mode) and 100 dB (stationary mode) system gain, per channel. Peaceful coexistence with adjacent Wi-Fi (2.4 GHz & 5 GHz), femtocells, picocells and cellular devices. Advanced digital echo-cancellation (>30 dB) and channel select filtering algorithms. Automatic Gain Control (AGC) based on fast real-time echo-cancellation Linear RF front end. Adaptive signal equalization. Uses Nextivity’s 3rd-generation "ARES" chipset. |
|---|---|
| System Features: | SMA Female connectors for Donor and Server antennas. NEMA 4 rated enclosure and connectors. Support for BIAS-TEE power through Server port. Glanceable LED User Interface (UI). Supporting smart phone application (Cel-Fi WAVE). Convection cooled cast aluminum chassis. Easy mounting capability. Mounting screws and anchors included. |
| Mobile Network and Network Protection Features: | Global band combinations available. Systems are pre-configured for a single carrier (network operator). Supports multiple channels with bandwidths of 5/10/15/20 MHz per channel. Works with any user equipment (UE) on the configured network (no whitelist/ blacklist). Up to 40 MHz system relay bandwidth. Support for 3GPP Release 10 features. Provider-specific system: Cel-Fi distributes and boosts service only for the Operator PLMNIDs for which the device is authorized and configured. Secure and ciphered provisioning. System intelligence accurately establishes proper safe uplink power in real time. Uplink Muting Mode automatically shuts down uplink cellular transmissions when no active user equipment is detected. System shuts down upon Operator’s network command or failure detection. |
| Wireless Benefits: | Clear and reliable cellular connections withing coverage area up to 12,500 ft2 (mobile mode) and 15,000 ft2 (stationary mode) per system. Highest gain provides best coverage footprint. Advanced Echo-Cancelation allows Cel-Fi to transmit more power without feedback interference. Subscriber devices (UE) require less transmit power for improved battery life. Linearity eliminates IMD desense issues. Dynamic gain control ensures maximum gain—best coverage—at all times in ever changing RF environments, without user intervention. Nextivity purpose-built, high-performance, six core ASIC processor, provides best performance at lowest cost. Cel-Fi WAVE is a smartphone app that will help you get the best performance from your Cel-Fi GO+. |
| System Benefits: | Distribute and boost cellular coverage. 3G and 4G support, Voice and Data, network safe. LED cues provide visual feedback for ease of setup and status. Works with any subscriber device from the configured Operator. |
| Mobile Network Benefits: | Flexibly deploy on LTE, VoLTE, LTE-Advanced, and WCDMA networks, with multiple cellular bands, simultaneously. Automatically adjusts channel bandwidths between 5 MHz and 20 MHz. UE control is transparent and remains centralized in the network core (no gateways or third-party software). |
| Compliance: | 3GPP TS 25.143 Rel.10. 3GPP TS 36.143 Rel.10. FCC Part 15, 20, 22, 24, 27. ISED (Industre Canada). Bluetooth BQB. CE. |
| System Management (Software): | Supported by Cel-Fi WAVE cloud portal. Cel-Fi WAVE Portal capability: Status (List and Map). Commissioning. Diagnostics. Software Updates. Settings. Reporting. Alarms & Notifications. |
| Antenna Ports (Donor and Server): | Model G32-2/4/5/15/13P or G32-2/4/5/12/13P: 699–2180 MHz. Impedance: 50 Ohm. Return Loss: 8 dB. Output Protection. |
| Environmental: | Operating temperature: 0° to 65° C. Convection Cooling. Relative humidity: 0% to 95%, noncondensing. WEEE. NEMA 4. Surface Temp at any point (30° ambient): 53°C. |
| Dimensions: | Height = 43.5 mm. Width = 96.5 mm. Length = 272.5 mm. |
| Weight: | 850 grams |
| Power: | 9.6–16.5V. 2A current draw. 16W nominal power consumption. |
| Installation: | Mounting hardware included. |
| DC Power NEMA 4 Rated Plug and Jack: (both power supplies included for stationary and mobile) | Stationary Mode = AC Power. Mobile Mode = CLA (12V Car Power Adapter). CD Power Jack. |
| Radio Performance: | The Cel-Fi GO system can boost up to two (2) bands concurrently. Either profile can be selected: A) One (1) High band boost and one (1) low band boost or B) Two (2) high bands boost. |
| Model Number and Bands Supported: | Model G32-2/4/5/15/13P or G32-2/4/5/12/13P supports bands 2, 4, 5, 12, 13. |
| Band 2 | Downlink Frequencies = 1930–1990 MHz. Uplink Frequencies = 1850–1910 MHz. Up to 20 MHz contiguous boost, HSPA or LTE. |
| Band 4 | Downlink Frequencies = 2110–2155 MHz. Uplink Frequencies = 1710–1755 MHz. Up to 20 MHz contiguous boost, HSPA or LTE. |
| Band 5 | Downlink Frequencies = 869–894 MHz. Uplink Frequencies = 824–849 MHz. Up to 20 MHz contiguous boost, HSPA or LTE. |
| Band 12 | Downlink Frequencies = 729–746 MHz. Uplink Frequencies = 699–716 MHz. Up to 10 MHz contiguous boost, LTE. |
| Band 13 | Downlink Frequencies = 746–756 MHz. Uplink Frequencies = 777–787 MHz. Up to 10 MHz contiguous boost, LTE. |
| Band Variations: (check product version for specific band support) | Maximum DL in-band donor level -40 dBm. Maximum UL power 22 dBm bands 2, 4. Maximum UL power 20 dBm bands 5, 12, 13. Maximum DL power 10 dBm per 5 MHz bands 2, 4. Maximum DL power 10 dBm per 5 MHz bands 5, 12, 13. LTE 5/10/15/20 MHz and WCDMA 5 MHz bandwidths. |
